Jeti MFlow2-T3000 Accessory
£220.79
Tax Included
| Weight [g] | 40 |
| Dimensions [mm] | 77 x 41 x 30 |
| Operational temperature [°C] | -20 ... 85 |
| Supply Voltage [V] | 5 ... 8.4 |
| Average Current [mA] | 20 |
Files for download
Manuals - MFLOW2
MFLOW2 Manual [CZ] - Czech User Manual
MFLOW2 Manual [DE] - German User Manual
MFLOW2 Manual [EN] - English User Manual
Update - Sensors
MRPM HALL V1.02 - MRPM HALL Update (11/2018)
MULI6s Module Update V1.04 (4/2018) - MULI6s M Firmware Update
MFLOW2 EX Update V1.05 (5/2017) - MFLOW2 EX Update
MUI EX Update V2.03 (8/2016) - MUI Update - added energy calculation (wattminutes for F5B)
Mx Update EX (8/2013) - Firmware Update for Sensors

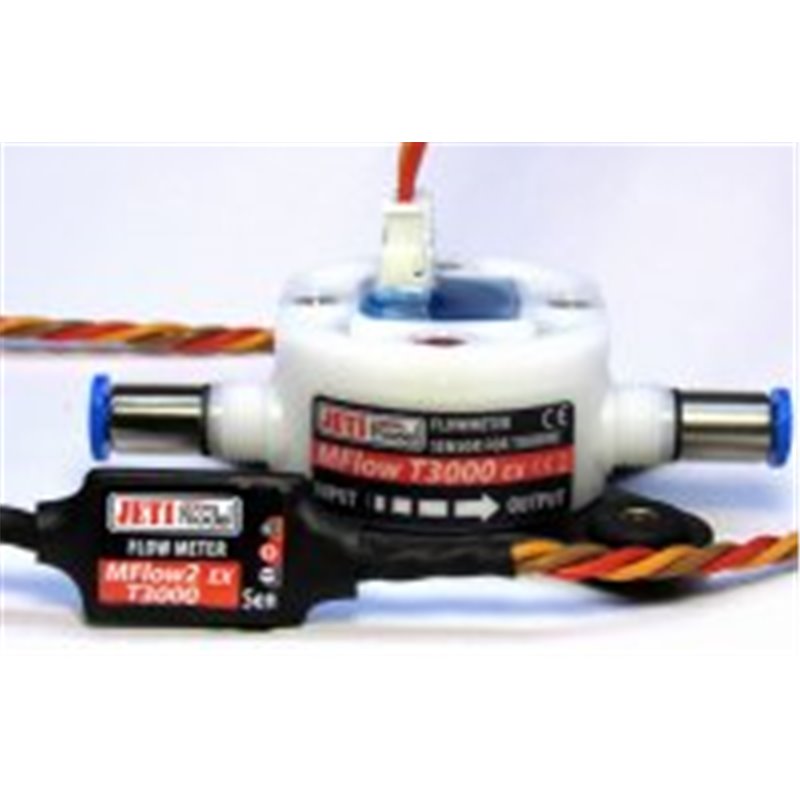

The MFlow2 Turbine 3000 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. The MFlow2-Turbine is a variant designed for the models powered by a jet engine, with consumption up to 3000ml/min.
Main features
- The sensor is compatible with Duplex EX system.
- EX telemetry values: actual flow and the amount of the fuel in the tank.
- User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.
- Firmware updates.
MFlow2 consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type:
MFlow2 T3000: 2x FESTO for tubes with the external diameter of 4mm
Technical data
|
Technical data |
MFlow2-Turbine 3000 |
|
Measurement range |
50-3000 ml/min |
|
Measurement accuracy |
±2% |
|
Tubing connection |
2x Festo Ø4mm |
