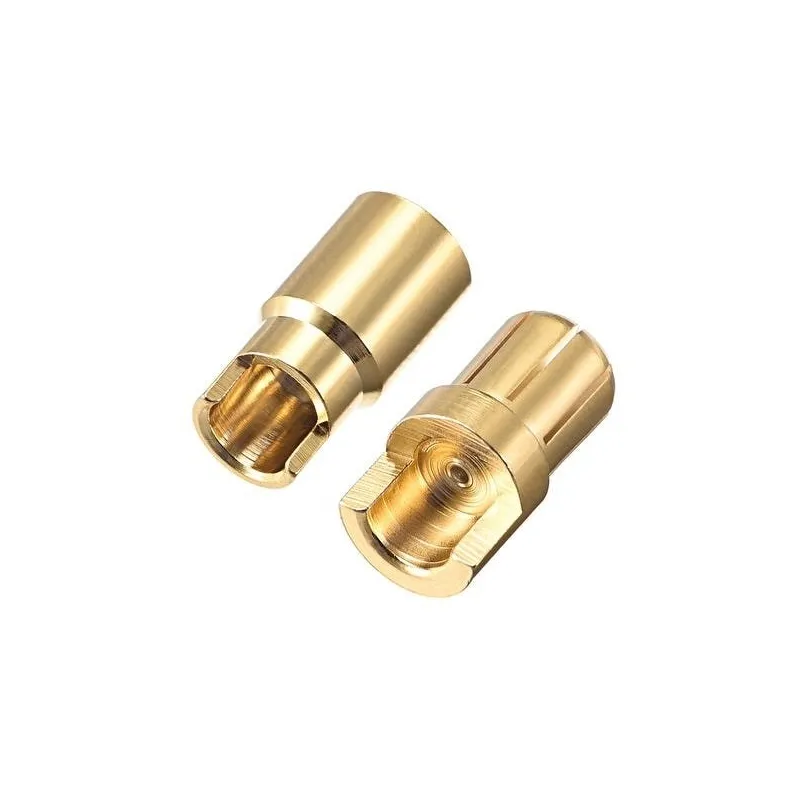

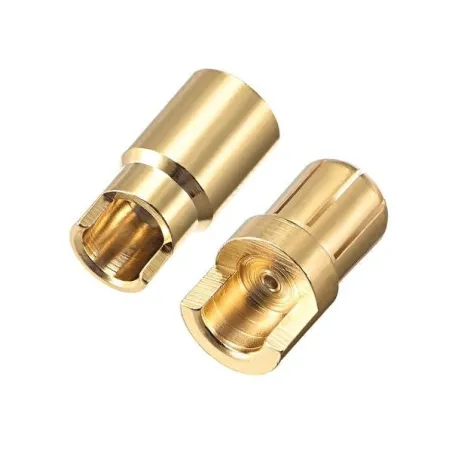

6 mm Gold Connectors 2 pairs
£3.99
Tax Included
2 pairs of 6 mm bullet connectors.
These 6.0mm bullet connectors are gold plated to ensure the best possible connection. Y
ou will receive 2 male and 2 female 6mm bullet connectors .
Use these bullet connectors to connect two rc parts that you want to be able to disconnect easily, for example when connecting a brushless motor or battery to a speed controller.
Two male 6mm bullet connectors are commonly used connect the charging jacks on our battery chargers to a battery charging harness.
You will need to solder on a wire to one end of each 6mm bullet connector.
In some instances it is recommended to surround the exposed ends of the bullet connectors with heatshrink tubing.
Specifications for each 6mm bullet connector Diameter: 6.0 mm | 0.24 in Male Connector Length: 14 mm | 0.55 in Male Connector Weight: 1.70 g | 0.06 oz Female Connector Length: 14 mm | 0.55 in Female Connector Weight: 1.13 g | 0.04 oz
Features of 6mm bullet connectors Very high current connectors Very low resistance Strong holding force Gold plating Suitable for applications up to 200 Amps
