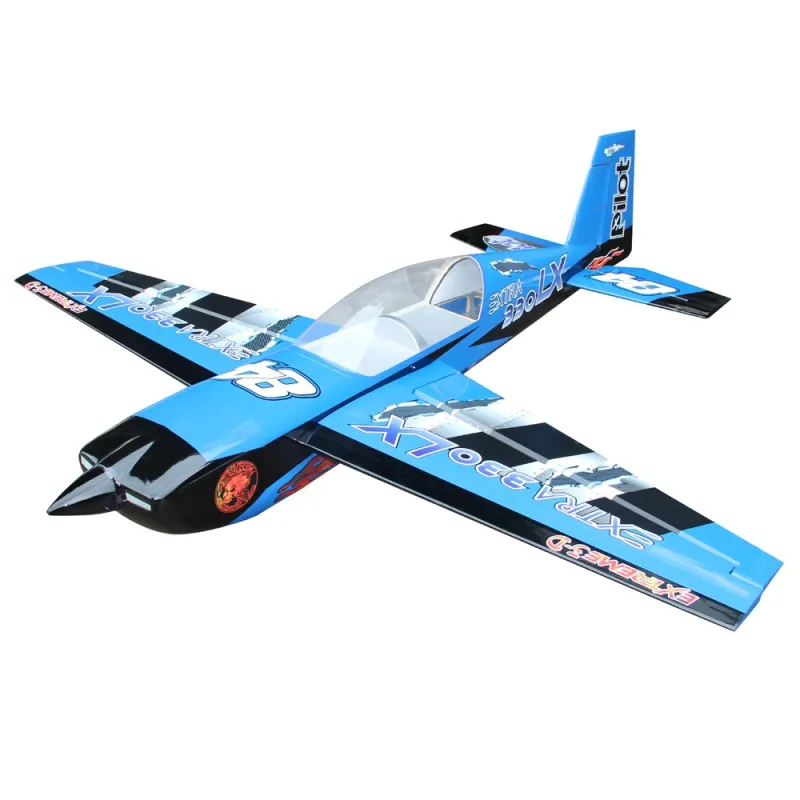

EXTRA-330LX 103IN (CF) BLUE/BLACK LX-04

Features

• NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood and carbon stringers.
• NEW! Updated design with a shorter wingspan, offering a faster roll rate and even more agile than ever before.
• Choose between a fully printed cover design, or classic Genuine German Oracover (Ultracote) covering
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling - so no external screws exposed
• Exhaust tunnel pre-installed in fuselage for easy canister installation
• Removable rudder (as well as removable wings and stabs)
• Laser engraved motor mounting position
• Push-Pull system for Rudder servos

*Due to carbon construction, this kit does not offer Free replacement wood

Description

Pilot-Rc Extra's are known for flying great, regardless of the version. This new almost entirely carbon reinforced version takes the design further than ever before. Strong, light and more rigid than ever before, this alone makes this plane a winner, but add the design tweaks and it becomes a showstopper!

Included Hardware

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Matching carbon spinner

Required Hardware

Motor: 80-120cc or equivalent electric

Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Specifications

Build information

Cowl Size

A: 357mm – B: 343mm – C: 302mm – D: 325mm

Exhaust Tunnel Size

A: 390mm – B: 127mm – C: 448mm – D: 120mm – E: 172mm – F: mm

Rudder Horns and Pull Pull Location

A: – B: – C: 81mm – D: – E: 8.5mm

Servo Extension Lengths

• Throttle: 40cm
• Each aileron: 30cm + 83cm (nearest servo and furthest servo – to reach receiver direct)
• Each elevator: 160cm
• Rudder: 140cm (when using direct – if installing pull pull, no required extension)

Centre of Gravity

Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
