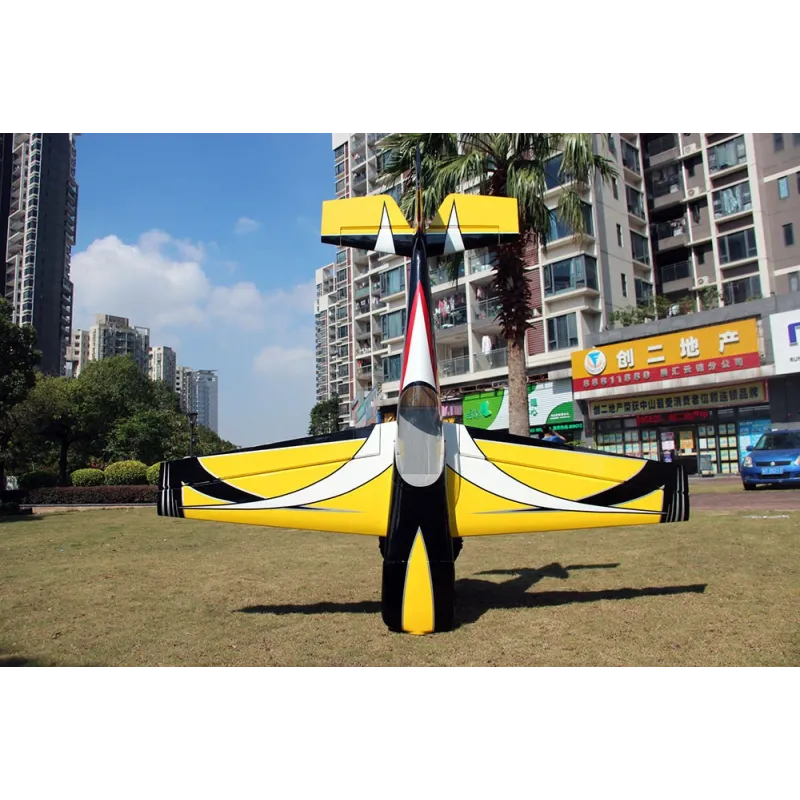

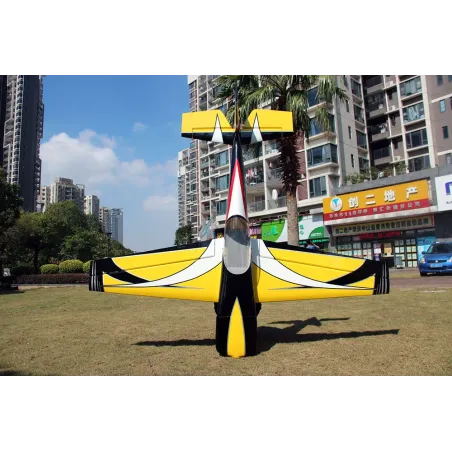

LASER 103IN (CF) BLK/YELLOW/WHITE (05)

Time for a change! Pilot-RC has broken all the molds with this one.

Video before words for this one, can YOU keep up…?!

The Laser has been fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.

You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!

Features

• NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood and carbon stringers.
• Genuine German Oracover (Ultracote) covering
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no external screws exposed
• Includes cooling baffles
• Exhaust tunnel pre-installed in fuselage for easy canister installation
• Removable rudder (as well as removable wings and stabs)
• Laser engraved motor mounting position
• Push-Pull system for Rudder servos

*Due to carbon construction, this kit does not offer Free replacement wood

Included Hardware

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pull-pull wires and pushrods with ball links
• Matching carbon spinner

Required Hardware (Not Supplied)

Motor: 80-120cc or equivalent electric (Please note if your using a Saito FG-100TS 4-Stroke you will require a 26"x10" prop)

Servos: Please see MacGregor Hardware Packs below.

MacGregor Hardware Pack 1 - 8 x MacGregor MG7232HV Servo, 1 x MacGregor MG5921HV Servo, 8 x Single Aluminium Servo Arm 1.6in, 4 x Dualsky 1200mm HD Leads, 2 x Dualsky 600mm HD Leads, 2 x Dualsky 150mm HD Leads, 2 x Dualsky 300mm Leads

Normal RRP: £674.45 | Combo Price: £539.56 = 20% Discount

MacGregor Hardware Pack 2 - 8 x MacGregor MGB6928HV Servo, 1 x MacGregor MG5921HV Servo, 8 x Single Aluminium Servo Arm 1.6in, 4 x Dualsky 1200mm HD Leads, 2 x Dualsky 600mm HD Leads, 2 x Dualsky 150mm HD Leads, 2 x Dualsky 300mm Leads

Normal RRP: £834.45 | Combo Price: £667.56 = 20% Discount

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox and possibly other small accessories.

Specifications

Video

Build information

Cowl Size

A: 335mm – B: 330mm – C: 307mm – D: 348mm

Exhaust Tunnel Size

A: 603mm – B: 103mm – C: Unlimited – D: 131mm – E: 172mm – F: 192mm

Due to the open tunnel design in the Laser, there is no backplate (measurement C) so there is no limit to the length of exhaust that can be used.

Rudder Horns and Pull Pull Location

A: 31mm – B: 55mm – C: 60mm – D: n/a – E: 8.5mm

Servo Extension Lengths

• Throttle: 40cm
• Each aileron: 25cm + 75cm (nearest servo and furthest servo – to reach receiver direct)
• Each elevator: 150cm
• Rudder: 140cm (when using direct – if installing pull pull, no required extension)

Centre of Gravity

194mm - Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
