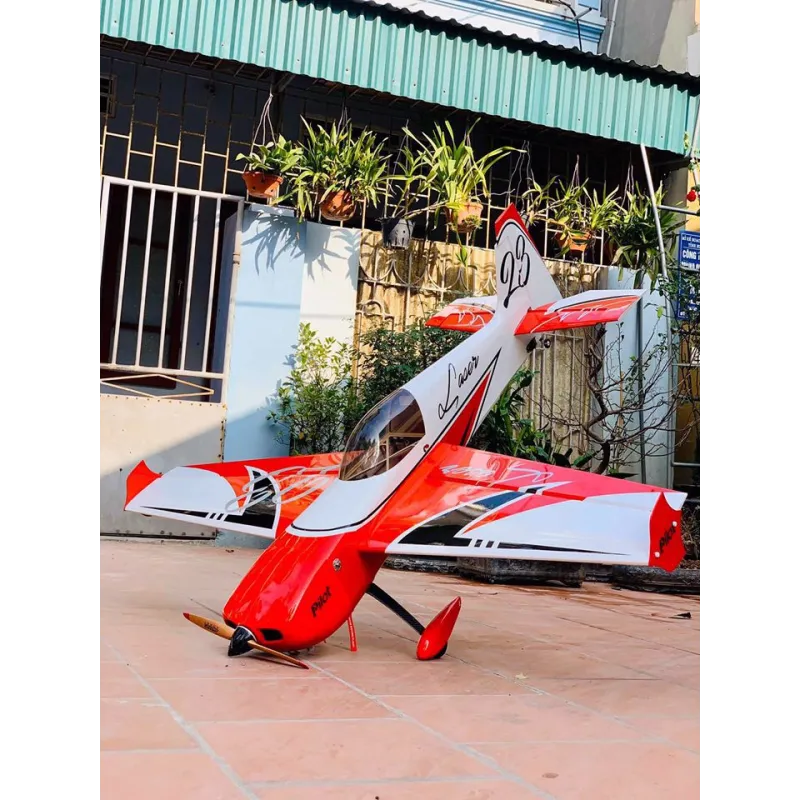

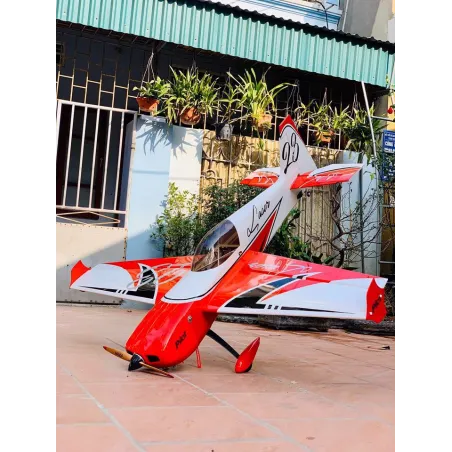

LASER 67IN CF RED/BLACK/WHITE (01)

That's right! Another new size of our popular Laser, this time for 20cc engines or electric power!

Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.

You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!

Specifications:

Features:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings.
• NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
• NEW! Patented quick assembly system for SFG.
• Strong yet light weight design, specially developed for precision acrobatic and extreme 3D flying
• Highly prefabricated, experienced builders can have air ready in under a day
• Removable wings
• Laser engraved motor mounting position
• Designed for both 20cc engine or electric motor
• Internally mounted cowling – so no external screws exposed
• Included servo extension wires and wing bags

Included Hardware:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tube as well as fiberglass control horns and wheel pants)
• Included wing bags
• Hinges ready to be installed and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pull-pull wires and pushrods with ball links
• Included spinner

Required hardware:

Motor: 20cc or equivalent electric

*Please note that the setup of this plane accepts both electric or gas engine, however in order to use gas engine, firewall and engine box must be reinforced.

Servos: 4 high torque plus throttle // Uses x1 per aileron, x1 for the elevator and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Pilot-RC recommended hardware:

• Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
• Servo arms: MacGregor Heavy Duty Servo Arms (ACC0017) (Please note these are supplied with Pilot-RC 67in Aircraft Power Pack with Servos (PIL408))
• Electric Motor & ESC: 67in Aircraft Power Pack (PIL406) or 67in Aircraft Power Pack with Servos (PIL408)

Video:

Setup used in this video:

• Motor: Pilot-RC CC20/400kv (Dualsky GA2000)
• ESC: Dualsky 130A HV
• Battery: 6S 4.200mAh

Build information:

Cowl Size

A: 222mm – B: 222mm – C: 228mm – D: 232mm

Exhaust Tunnel Size

C: Unlimited

Due to the open tunnel design in the Laser, there is no backplate (measurement C) so there is no limit to the length of exhaust that can be used.

Rudder Horns and Pull Pull Location

B: 52mm – C: 34mm – D: n/a – E: n/a

Servo Extension Lengths:

• Throttle: No extension required
• Each aileron: 25cm (to reach receiver direct)
• Each elevator: 80cm
• Rudder: Pull pull, no extension required
• Direct drive, 80cm

Centre of Gravity:

142mm - Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
