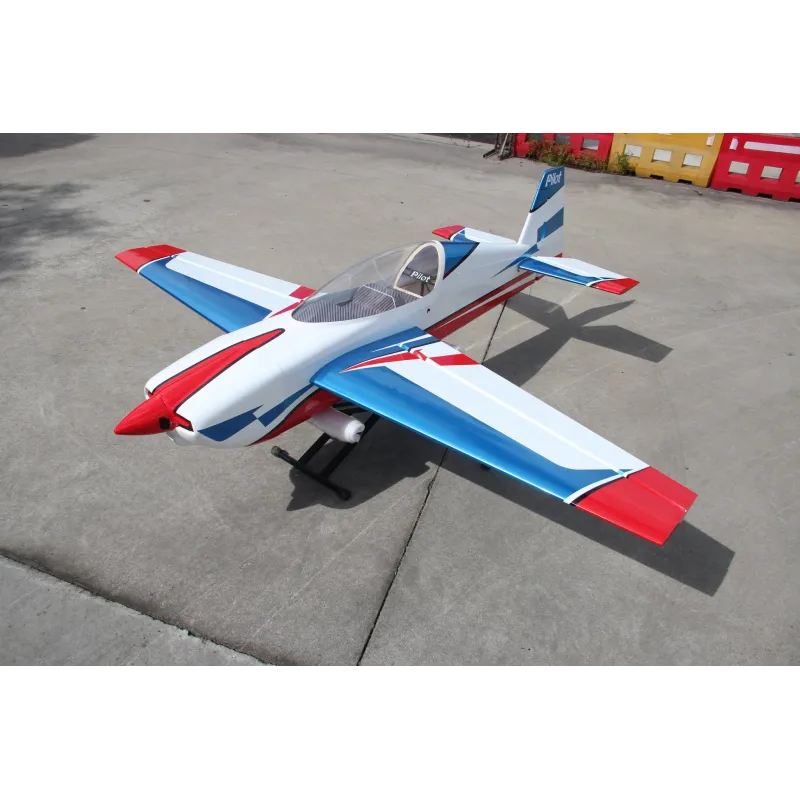

EXTRA-NG 78IN RED/BLUE/WHITE (01)

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.

The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

Specifications:

Features:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings, stabilazer and SFG.
• NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
• Film covering applied over a Genuine German Oracover (Ultracote) base
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed aileron and elevator hinges (glued and pinned)
• Easy canister installation due to open construction
• Removable wings and stabiliser
• Laser engraved motor mounting position
• Pull-Pull system for Rudder servo
• Cowl fits both gasoline and electric motors

Included Hardware:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pushrods with ball links
• Matching carbon spinner

Required Hardware:

Motor: 30-40cc or equivalent electric

Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Pilot-RC Recommended Hardware:

• Servos: Pilot-RC PW20AH (20Kg – 0.14s at 8.4v)
• Servo arms: Pilot-RC 1.6in Aluminium Arms
• Wingbags: Pilot-RC wingbags

Video

Pilot-RC 78in Extra-NG

Build Information

Cowl Size

A: 262mm - B: 252mm - C: 243mm - D: 237mm

Exhaust Tunnel Size

A: 466mm - B: 72mm - C: 466mm - D: 90mm - E: 162mm

Rudder Horns and Pull Pull Location

A: 74mm - B: 104mm - C: N/A - D: 37mm

Servo Extension Lengths

• Throttle: 10cm
• Each aileron: 25cm (to reach receiver direct)
• Each elevator: 70cm
• Rudder: Pull pull, no extension required

Centre of Gravity

180mm - Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
