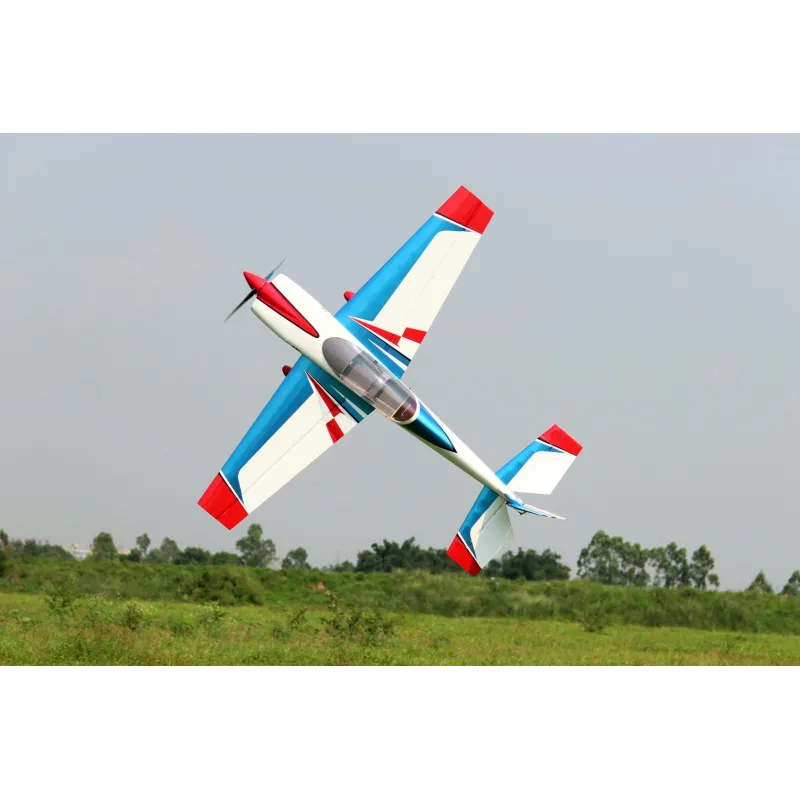

EXTRA-NG 90IN RED/BLUE/WHITE (01)

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.

The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

Specifications:

Features:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings, stabiliser and SFG
• NEW! Patented quick assembly system for canopy.
• Film covering applied over a Genuine German Oracover (Ultracote) base
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
• Removable wings and stabs
• Laser engraved motor mounting position
• Easy canister installation due to open construction
• Pull push system for Rudder servo

Included Hardware:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• "Spare" lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axles and wheel pants
• Pre-prepared pushrods with ball links
• Matching carbon spinner

Crash Kits Available For This Model:

• Landing gear repair package. Includes the wooden parts required to repair the damage often suffered around the landing gear area.
• Front fuselage repair package. Includes the wooden parts required to repair the damage often suffered around the front of the model
• Please note that additional or alternative spare wood outside of the above Packs is not available to order.

Images for illustration purposes only – exact contents vary per package, model and size.

Required Hardware:

Motor: 50-76cc or equivalent electric

Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Recommended Hardware:

• Servos: MacGregor MG7232HV 31.5Kg.cm/0.09s High Voltage Servo
• Servo arms: Pilot-RC 1.6in Aluminium arms (PIL302)
• Engine: DLE-55RA Two-Stroke Petrol Engine | DLE-60 Two-Stroke Petrol Engine | DLE-61 Two-Stroke Petrol Engine | DLE-65 Two-Stroke Petrol Engine
• Wingbags: Pilot-RC Wing Bag for 60cc Aerobatic Plane

Video

Pilot-RC 90in Extra-NG

Schemes List and Replacement Covering Numbers

Build Information

Cowl Size

A: 198mm - B: 252mm - C: 243mm - D: 237mm

Exhaust Tunnel Size

A: 624mm - B: 102mm - C: 624mm - D: 51mm - E: 162mm - F: 167mm

Rudder Horns and Pull Pull Location

A: N/A - B: N/A - C: N/A - D: 5mm - E: 8.5mm

Servo Extension Lengths

• Each aileron: 25cm (to reach receiver direct)
• Each elevator: 125cm
• Rudder: 125cm

Centre of Gravity

197mm - Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
