Jeti MFlow2 G800 Accessory
£191.98
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
| Weight [g] | 40 |
| Dimensions [mm] | 72 x 41 x 30 |
| Operational temperature [°C] | -20 ... 85 |
| Supply Voltage [V] | 5 ... 8.4 |
| Average Current [mA] | 20 |
Files for download
Manuals - MFLOW2
MFLOW2 Manual [CZ] - Czech User Manual
MFLOW2 Manual [DE] - German User Manual
MFLOW2 Manual [EN] - English User Manual
Update - Sensors
MRPM HALL V1.02 - MRPM HALL Update (11/2018)
MULI6s Module Update V1.04 (4/2018) - MULI6s M Firmware Update
MFLOW2 EX Update V1.05 (5/2017) - MFLOW2 EX Update
MUI EX Update V2.03 (8/2016) - MUI Update - added energy calculation (wattminutes for F5B)
Mx Update EX (8/2013) - Firmware Update for Sensors

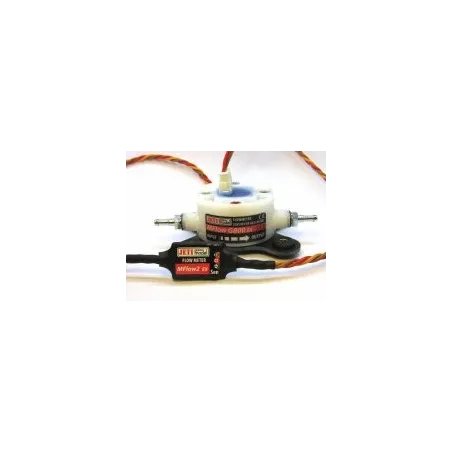

The MFlow2 Gas 800 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. The MFlow2-Gasoline is a variant for the models powered by glow or gasoline motors.
Main features
- The sensor is compatible with Duplex EX system.
- EX telemetry values: actual flow and the amount of the fuel in the tank.
- User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.
- Firmware updates.
MFlow2 consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type:
MFlow2 G: 2x barbed fittings for tubes with the internal diameter of 2 mm a 2x barbed fittings for tubes with the internal diameter of 3 mm
Technical data
Technical data | MFlow2-Gasoline |
Measurement range | 20-800 ml/min |
Measurement accuracy | ±2% |
Tubing connection | 2x barbed fittings Ø2 a Ø3 |
JEX-MF2G-800
Specific References
- EAN13
- 8595245914240
