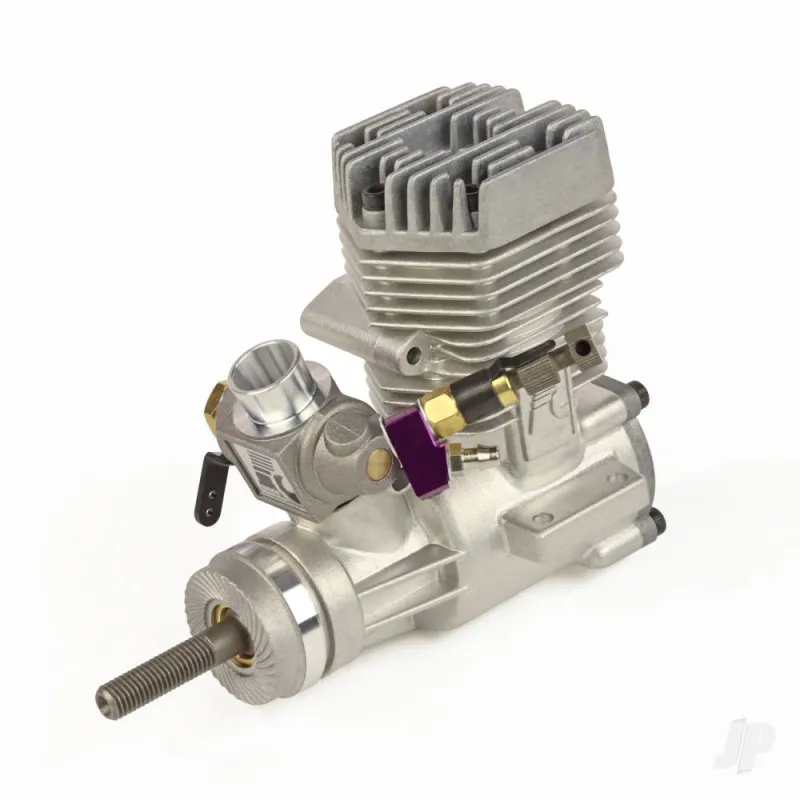

Force 46 ABC Aero Engine (7.45cc)

FEATURES

• ABC piston and liner.
• Powerful 7.45cc single cylinder two-stroke.
• 2,000 to 17,000rpm range.
• Schnuerle ported cylinder and liner.
• 10 x 6 to 12 x 5" propeller range.
• Uses glow fuel with between 5 and 15% nitromethane.
• Twin bearings.
• Twin needle carb with rear facing main needle.

CONTENTS

• 1x Force 46 ABC two-stroke aero engine.
• 1x Torpedo silencer with pressure nipple.
• 1x Silencer gasket.
• 2x Silencer mounting screws.
• 1x Propeller driver.
• 1x Prop nut and washer.
• 1x Instruction and operating sheet.

NEEDED TO COMPLETE

• 1x Medium cold glow plug.
• 1x 10 x 6 to 12 x 5" propeller.

DETAILS

R/C flyers adore engines, they always will, and for many two-strokes are still the preferred choice, particularly in the quality mid-range club sector where, of course, the ubiquitous .46 .52 two-stroke has so many uses. Well, as luck would have it, recent demand has encouraged Force Engines to step up and produce this beautifully-made single-cylinder, front induction, ABC, R/C glow engine.

Sporting a crisp and clean, bead blasted crankcase, robust one-piece crankshaft supported on a front (sealed) and rear (open) bearing the Force 46 offers reassuring longevity with its aluminium alloy piston and hard chrome-plated brass liner, the latter schnuerle ported for improved efficiency and power. Add a proven twin needle carburettor, substantial high-volume silencer, cast high-grip knurled prop driver and rpm range of 2,000 to 17,000 and you have a perfect, and rather eye-catching R/C sport aero engine for a variety of propeller sizes in the popular 10 x 6 to 12 x 5 bracket.

Easy to start, easy to tune and promising years of reliable service the Force 46 is more than a match for your Sunday hack or sport aerobat and it wont break the bank.

Specification:

Displacement (cc):	7.45
Bore (mm):	22
Stroke (mm):	19.6
Weight (g):	371.5
Fuel:	Glow
Nitro content:	5 15%
