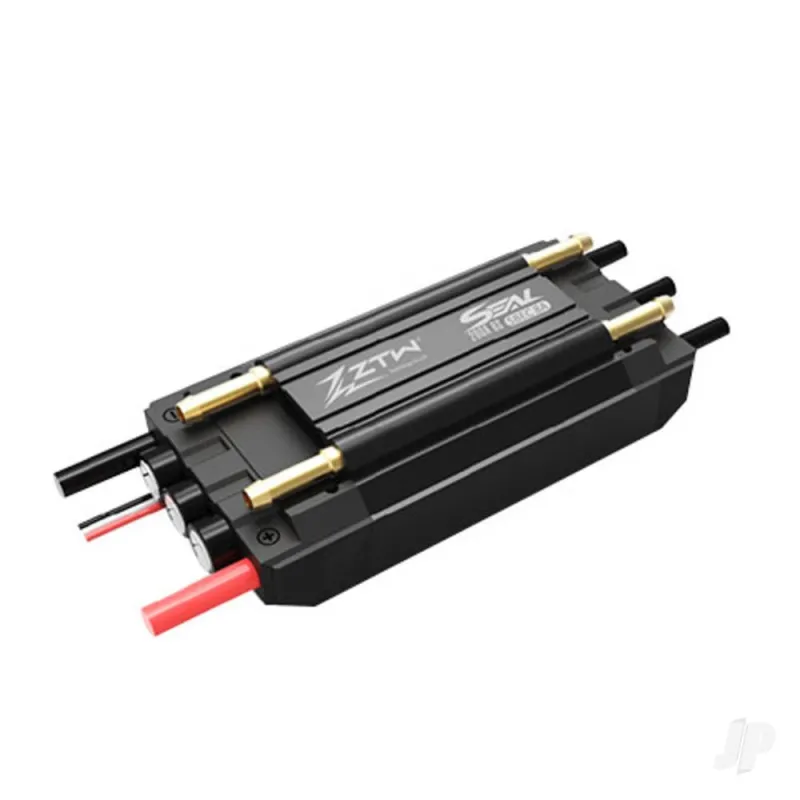

ZTW Seal 200A SBEC 8A 8S ESC

FEATURES

• Water cooling
• Normal Continuous Current 200A
• Burst Current 300A
• Battery 5-24 NiMh / 2-8 Lipo
• BEC output 6V 8A
• Power Wires 10 AWG, 160mm-Red/160mm-Black
• Motor Wires 10 AWG, 160mm-Orange/Yellow/Blue
• Signal Wires（Black/Red/White）300mm with Normal JR Male
• ESC size - L=97mm W=49mm H=27mm

CONTENTS

• 1x ZTW Seal 200A ESC

DETAILS

Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.
