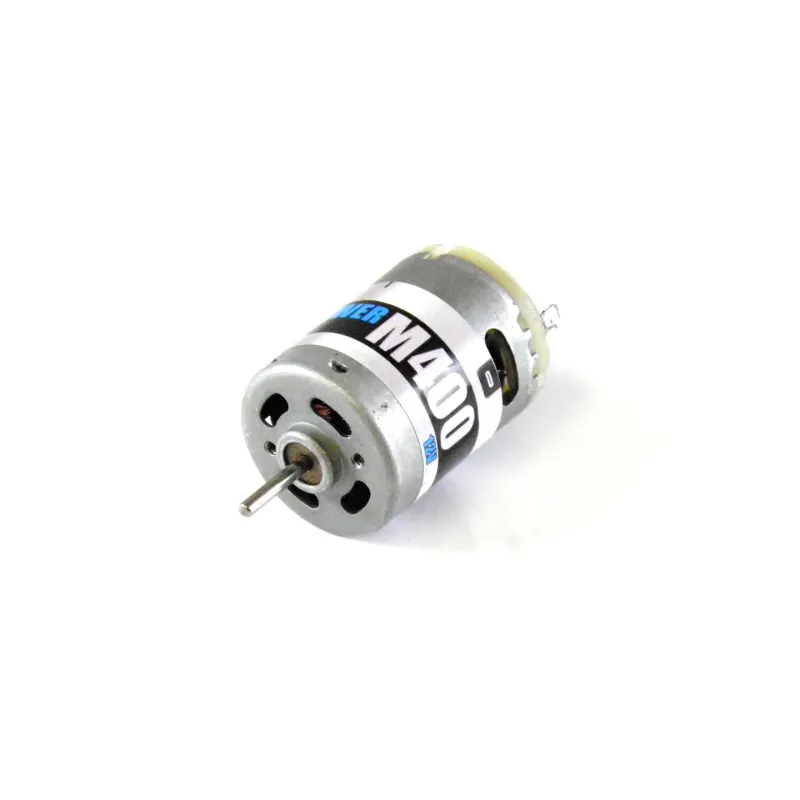

The Mtroniks 'Power M400' brushed motor is the smallest in the new line of brushed motors for model boats from Mtroniks.
The M400 is a 400 can sized motor, sometimes referred to as 370 or 380 size, it is ideal for use in small scale model boats running between 6 and 12V.
The M400 has standard pitch mounting holes of 16.0mm, M2.5.
Running at 12V, at maximum efficiency, the M400 will run at around 20000RPM and pull around 4Amps. Start up current, depending on prop size, would be around 10Amps.
Motor Type | Brushed |
Motor size | 400 |
[email protected] | 20000 |
Power | 20W |
Stall current @12V | 27.0A |
Shaft diameter | 2.25mm |
Length | 37.5mm |
Diameter | 27.5mm |
Weight | 65.0g |
