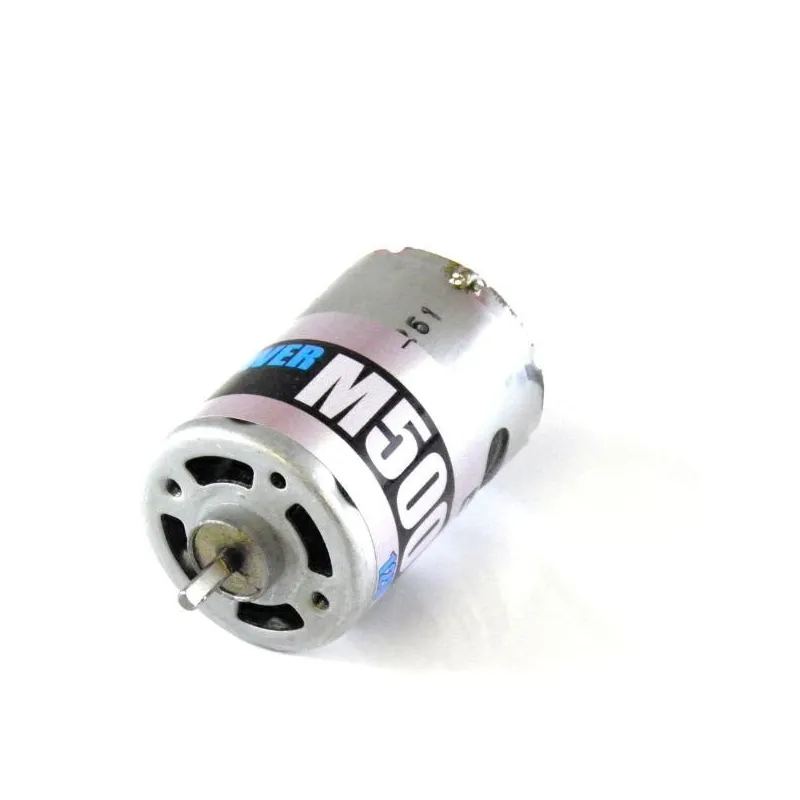

The Mtroniks 'Power M500' brushed motor is the middle motor in the new line of brushed motors for model boats from Mtroniks.
The M500 is a 500 can sized motor, sometimes referred to as 540 size, it is ideal for use in small to medium scale model boats running between 6 and 12V.
The M500 has standard pitch mounting holes of 25.0mm, M3.
Running at 12V, at maximum efficiency, the M500 will run at around 4700RPM and pull around 2.7 Amps. Start up current, depending on prop size, would be around 15Amps.
Motor Type | Brushed |
Motor size | 500 |
[email protected] | 4700 |
Power | 22W |
Stall current @12V | 21.0A |
Shaft diameter | 3.17mm |
Length | 56.0mm |
Diameter | 35.8mm |
Weight | 210.0g |
