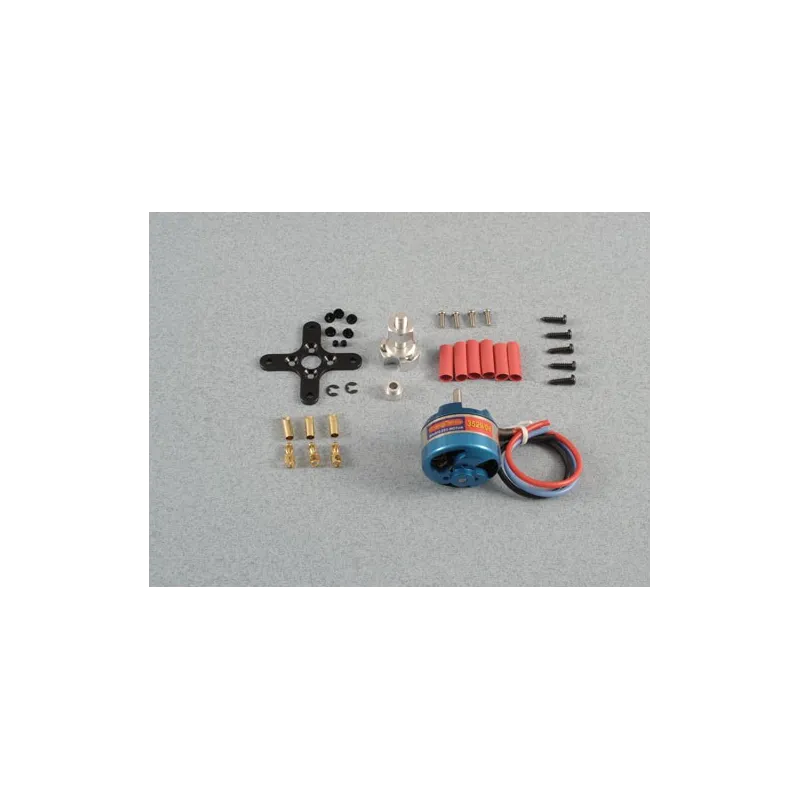

FUSION 3529/08 Brushless Motor 1600kv M-FS3529/08
£27.99
Tax Included
Specifications
Example Configurations
| TYPE | M-FS3529/08 | M-FS3529/09 | M-FS3529/10 | M-FS3535/05 | M-FS3535/09 |
| RPM/V (kv) | 1,600 | 1,400 | 1,300 | 1,500 | 900 |
| Max. Current | 25A | 23A | 21A | 37A | 35A |
| Op. Current | 12~17A | 11~16A | 10~15A | 18~28A | 15~25A |
| 2 Li-Po | 2~3 Cells | 2~3 Cells | 2~3 Cells | 2~3 Cells | 3~4 Cells |
| NiCd/NiMH | 7~10 Cells | 7~10 Cells | 7~10 Cells | 7~10 Cells | 8~12 Cells |
| Shaft Dia. | 4.0mm | 4.0mm | 4.0mm | 4.0mm | 4.0mm |
| Weight | 78g | 78g | 78g | 105g | 105g |
| Dimensions | 35x29mm | 35x29mm | 35x29mm | 35x35mm | 35x35mm |
| Turns | 8 | 9 | 10 | 5 | 9 |
| Poles | 14 | 14 | 14 | 14 | 14 |
Example Configurations
| Cells | Props | RPM | Current | Power | IC Equiv. | |
| M-FS3529/08 | 2 Li-Po | 8 x 4 | 9,600 | 14.6A | 123W | 8 |
| 2 Li-Po | 8 x 6 | 9,000 | 19.2A | 161W | 10 | |
| 2 Li-Po | 6 x 5.5 | 4,950 | 15.8A | 133W | 8 | |
| M-FS3529/10 | 2 Li-Po | 10 x 5 | 7,200 | 15.1A | 127W | 8 |
| 2 Li-Po | 9 x 6 | 7,300 | 14.7A | 123W | 8 | |
| 3 Li-Po | 7 x 5 | 11,700 | 14.5A | 183W | 11 | |
| 3 Li-Po | 8 x 4 | 11,500 | 16.7A | 210W | 13 | |
| M-FS3535/05 | 2 Li-Po | 12 x 6 | 6,660 | 35.2A | 296W | 19 |
| 2 Li-Po | 12 x 8 | 6,200 | 39.3A | 330W | 21 | |
| 3 Li-Po | 10 x 4 | 11,400 | 37.8A | 476W | 30 | |
| 3 Li-Po | 8 x 4 | 12,800 | 28.2A | 355W | 22 | |
| M-FS3535/09 | 3 Li-Po | 12 x 6 | 7,000 | 20.5A | 258W | 16 |
| 3 Li-Po | 12 x 8 | 6,600 | 25.0A | 315W | 20 | |
| 4 Li-Po | 10 x 5 | 9,900 | 20.5A | 344W | 22 | |
| 4 Li-Po | 11 x 5.5 | 9,300 | 26.5A | 445W | 28 | |
| M-FS3545/05 | 3 Li-Po | 10 x 5 | 9,800 | 27.0A | 340W | 21 |
| 3 Li-Po | 11 x 5.5 | 9,300 | 35.3A | 445W | 28 | |
| 4 Li-Po | 9 x 4.5 | 13,200 | 34.0A | 571W | 36 | |
| M-FS3545/06 | 2 Li-Po | 13 x 4 | 7,900 | 25.5A | 214W | 13 |
| 2 Li-Po | 12 x 5 | 7,850 | 27.0A | 227W | 14 | |
| 4 Li-Po | 10 x 5 | 10,800 | 27.5A | 462W | 29 | |
| M-FS3551/04 | 2 Li-Po | 13 x 10 | 4,800 | 27.5A | 231W | 14 |
| 3 Li-Po | 12 x 6 | 7,688 | 31.3A | 394W | 25 | |
| 3 Li-Po | 11 x 5.5 | 8,400 | 23.6A | 297W | 19 | |
| M-FS3551/05 | 3 Li-Po | 12 x 6 | 7,345 | 24.6A | 310W | 19 |
| 3 Li-Po | 11 x 10 | 6,960 | 29.6A | 373W | 23 | |
| 4 Li-Po | 10 x 5 | 10,500 | 23.3A | 391W | 24 | |
| 4 Li-Po | 10 x 6 | 10,008 | 26.5A | 445W | 28 | |
| 5 Li-Po | 9 x 4 | 13,354 | 25.4A | 533W | 33 | |
| M-FS3551/06 | 3 Li-Po | 13 x 8 | 5,982 | 23.5A | 296W | 19 |
| 4 Li-Po | 12 x 6 | 8,211 | 26.4A | 444W | 28 | |
| 5 Li-Po | 10 x 5 | 10,937 | 21.5A | 452W | 28 | |
| Please note: The configurations above have recently been revised to reflect more accurate data. | ||||||
M-FS3529/08
4 Items
Specific References
- ean13
- 5060177190107
