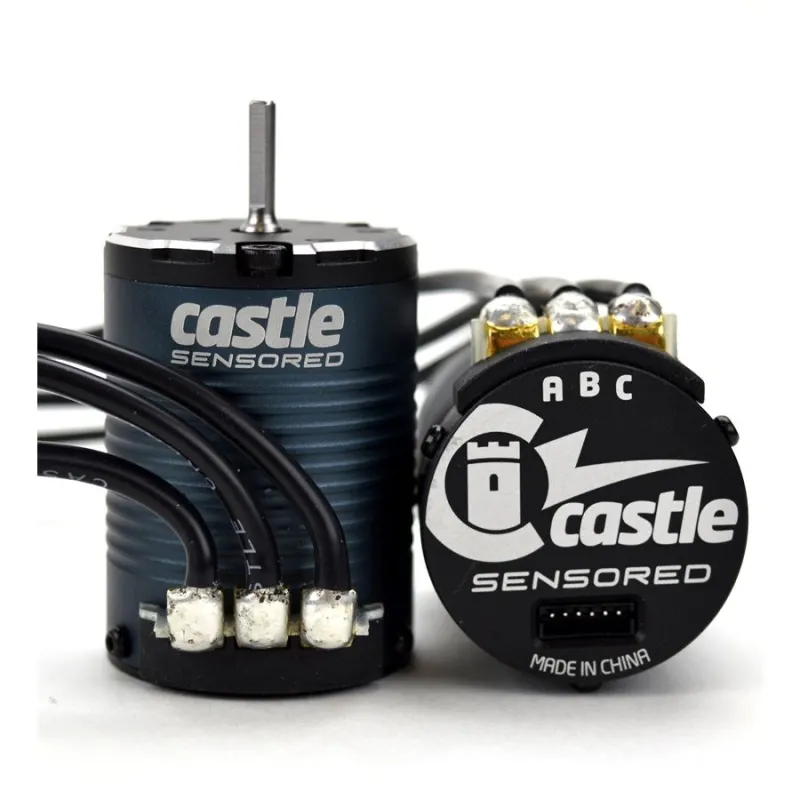

CASTLE MOTOR, 4-POLE SENSORED BRUSHLESS, 1406-3800kV M-CC060-0071-00
£119.99
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
For more than a decade Castle has been providing award winningbrushless sensorless motors to R/C enthusiasts worldwide. In responseto overwhelming requests by our customers, we have brought technologicaladvancements together that will deliver unprecedented performance inour new SENSORED motor Line. Our latest additions are the 1406 series in a "SLATE" color, in 1900KV, 2280KV, 2850KV and 3800KV. These motors are ROCK READY and we have the startup on low RPMs under control. Castle now has you covered if you are looking for ultimate control out on the trails or on your Ultra 4 track days.Length: 49.5mm Diameter: 36mm
Shaft Size: Length: 15mm Diameter: 1/8" (3.17mm) Optional 5mm rotor replacement available.
Application Guidelines:
Ideal for 1:10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
Max. Recommended Vehicle Weight:
8lbs when used for low speed/moderate driving style like rock crawling and trail running;5lbs for more racing and aggressive driving styles.(The 1410 3800kv recommend for heavier rigs and aggressive driving.)Input Voltage Range:2S-3S LiPo
Kv:3800
Max. RPM:100,000
Size:
Shaft Size:
Tech Notes:
Running modes: SMARTSENSET, Sensored, Sensorless with Castle sensored capable ESCs.Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
M-CC060-0071-00
