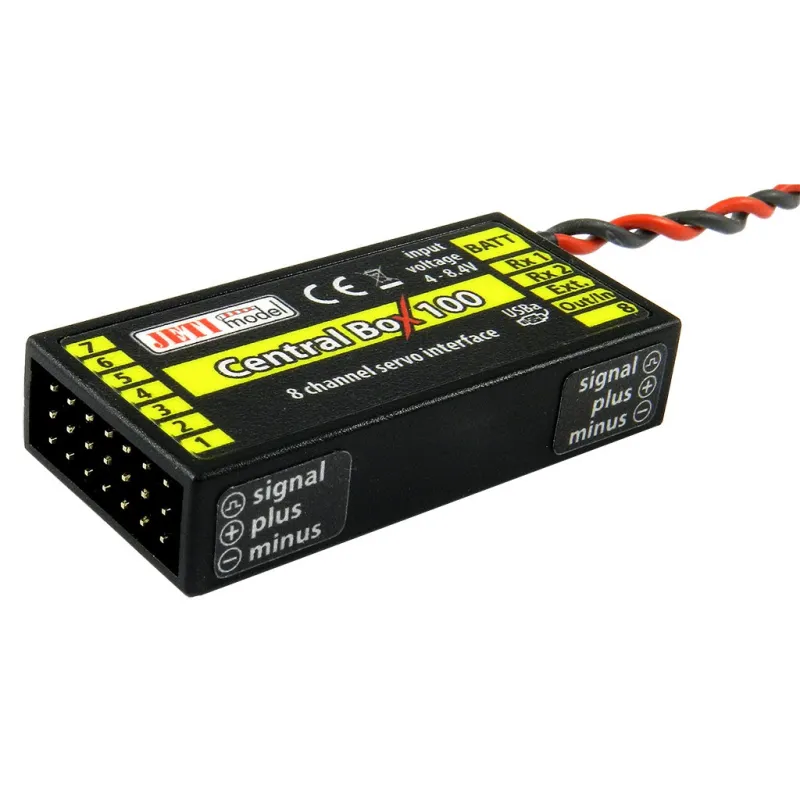

Jeti Central Box 100
£115.15
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
| Weight [g] | 20 |
| Dimensions [mm] | 52 x 25 x 11 |
| Sustained current [A] | 10 |
| Number of channels | 8 |
| Telemetry | Yes |
| Operational temperature [°C] | -20 ... 75 |
| Compatible protocols | EX Bus, PPM |
| Supply Voltage [V] | 4 ... 14 |
| Satellite receiver support | Yes |
| Batteries NiXX | 4 ... 10 |
| Batteries LiXX | 2 ... 3 |
| Number of battery inputs | 1 |
| Voltage stabilization | No |
| Peak current (2s) [A] | 90 |
Files for download
Manuals - Central Box
Central Box 100/200 Manual DE - German User Manual
Central Box 100/200 Manual EN - English User Manual
Central Box 100/200 Manual CZ - Czech User Manual
Central Box 100/200 JETIBOX Schema EN/DE - JETIBOX Properties & Menu
Update - Central Box
Central Box 200 V1.31 - Added 3rd receiver input for RSAT 900MHz (1/2019). New switchover strategy. Solved a telemetry issue that appeared in 1.30
Central Box 400 Update V1.09 - Added 3rd receiver input for RSAT 900MHz (10/2017)
Central Box 400 Update V1.07 - Device update for Central Box 400 (12/2016)
Central Box Update - 24 channels - Cummulative update for Central Box 100, 200 and 400 (12/2015)
The Central Box 100 is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box has a unique design that provides overload protection at each servo output. The Central Box can manage a single battery and fully supports the JETI EX telemetry system. Up to two receivers with serial (PPM, EX Bus) output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
Central Box 100 supports up to 8 protected servo outputs and a single battery input.
Attributes
- Overload protection on each channel
- Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus)
- Built-in Expander function
- MPX battery input connectors: 1x
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
- Easy settings changes via DC/DS transmitter
- Firmware updates by user
- Suitable for use with high voltage (HV) servos
- Compact size for easy installation
- Each output is individually configurable (channel assignment, trim, reverse, A TV)
Recommended connection of standard (as well as high voltage) servos:
J-CB-100
Specific References
- EAN13
- 8595245909987
