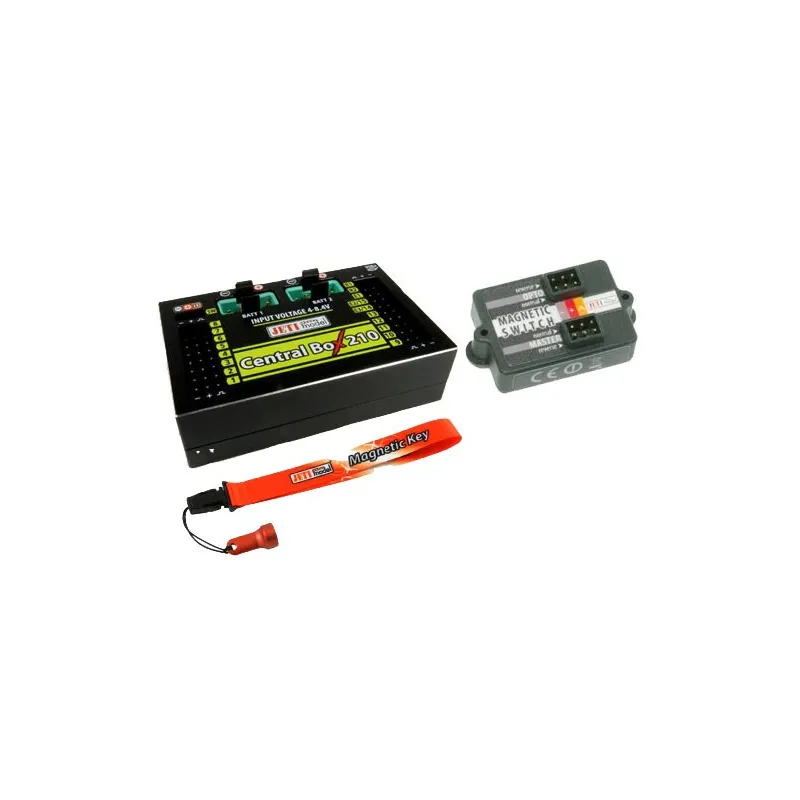

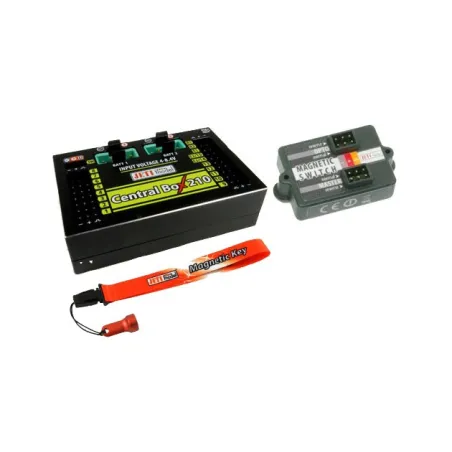

Jeti Central Box 210 with Magnetic Switch

Jet Model Central Box 210 with Magnetic switch

PLEASE MAKE SURE YOU HAVE THE LATEST TX FIRMWARE DOWNLOAD FROM JETI STUDIO (VERSION 5.3) SO YOU HAVE THE CORRECT DEVICE BIN FILES FOR THIS ITEM

The Central Box 210 is a switchboard designed for the complete management of servos in a model. The Central Box can manage two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry and DITEX servos telemetry. Central Box 210 supports up to 15 servo outputs, two battery inputs and incorporates possibility to connect an RC or magnetic switch.

Attributes
    Support of DITEX telemetry servos
    Possibility to connect up to 3 receivers with serial interface (EX-Bus, PPM)
    Built-in Expander function for up to 3 sensors
    Input for magnetic switch or RC switch
    Two MPX battery input connectors
    100Hz mode of servo outputs (10ms period)
    Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
    Easy settings changes via DC/DS transmitter
    Firmware updates by user
    Suitable for use with high voltage (HV) servos
    Compact size for easy installation
    Aluminium Case for Extra Cooling and Protection


Weight [g]     59
Dimensions [mm]     66 x 42 x 18
Sustained current [A]     20
Peak current (2s) [A]     90
Number of channels     15
Telemetry     Yes
Operational temperature [°C]     -20 ... 75
Compatible protocols     EX Bus, PPM
Supply Voltage [V]     4 ... 14
Satellite receiver support     Yes
Batteries NiXX     4 ... 10
Batteries LiXX     2 ... 3
Idle current [ľA]     180
Number of battery inputs     2
Voltage stabilization     No
