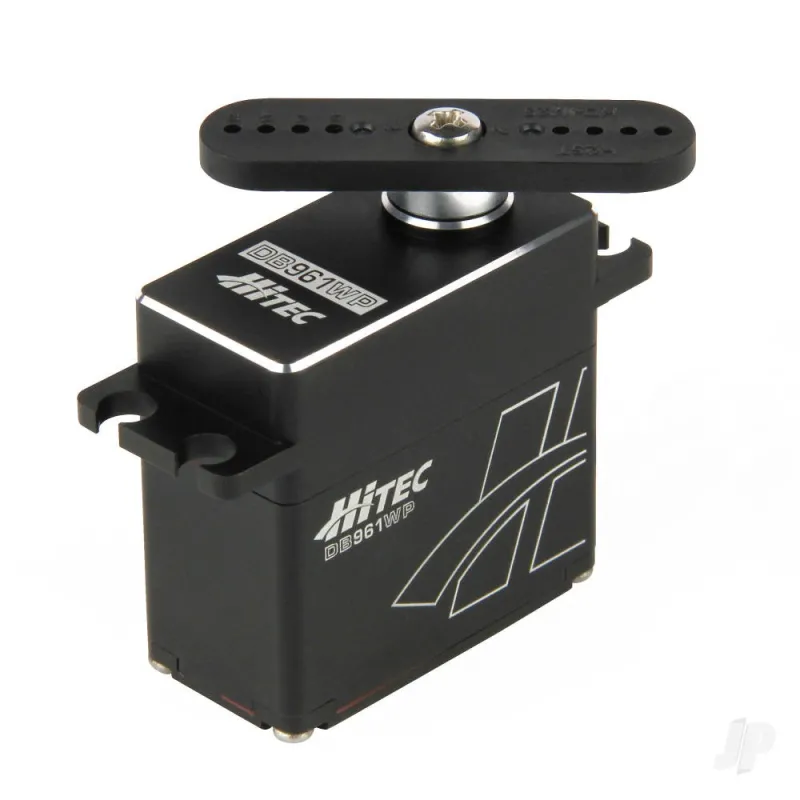

Hitec DB961WP Standard Digital Brushless Servo 90g 11.0 kg.cmkg/0.15sec/60°s 4.0V - 8.4V

FEATURES

• 32-bit CPU.
• 4096 resolution.
• Programmable.
• Wide operating voltage (4.8 – 7.4 volts DC).
• Dual ball raced output shaft.
• Brushless motor.
• Full metal black anodised case.
• 25 tooth output spline.
• Waterproof to IP-67 specification.
• End Point programming.
• Direction programming.
• Fail-safe programming.
• Dead band programming.
• Speed reduction programming.
• Soft start programming.
• Overload protection programming.

DETAILS

This IP-67-rated waterproof, brushless servo is suitable or all types of R/C model including, aircraft, boats and 1/10 to 1/4-scale cars. Sporting a black anodised metal case it's also a precision-engineered thing of beauty that, commensurate with Hitecs entire D series, is powered by a 32-bit CPU offering rapid, high resolution response, unprecedented programmability and a wide voltage capability. It's a combination that delivers leading-edge performance for all your radio control needs. The DB961WP is tough too. With incredibly durable steel gears, dual ball bearings and a hardened steel output shaft, it offers mighty torque and the reliability to keep you flying, driving and sailing in even the most hostile environment.

Specification:

Speed at 6.0V (sec):	0.18
Speed at 7.4V (sec):	0.15
Torque at 6.0V (kg.cm):	11
Torque at 7.4V (kg.cm):	11
Spline (teeth):	25
Input Voltage (V):	4.8 to 7.4
