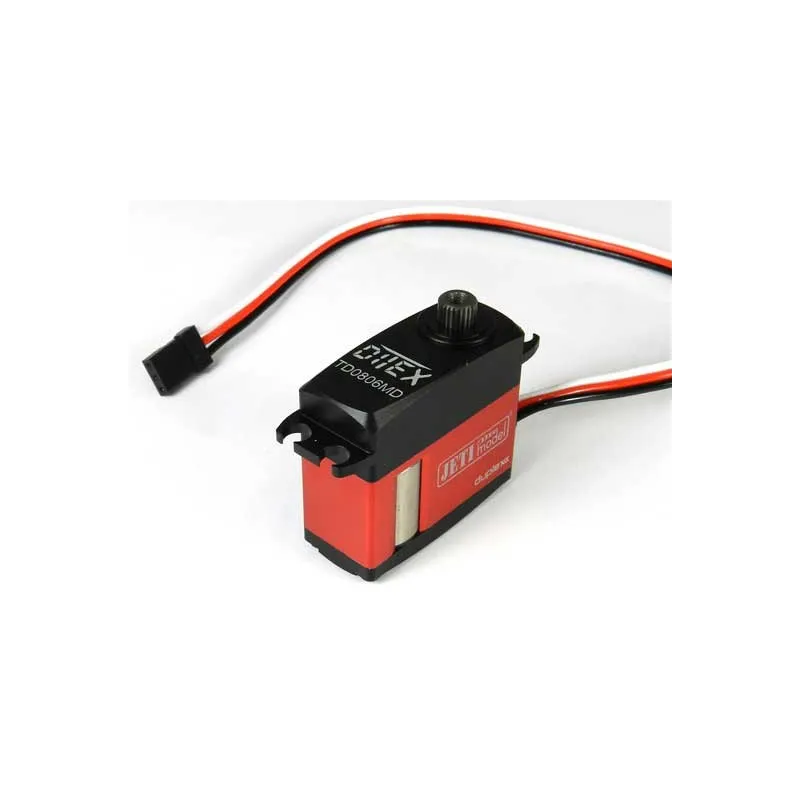

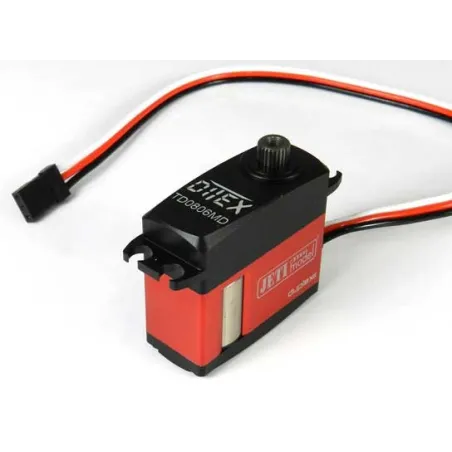

Jeti Ditex TD0806MD Servo

DITEX TD0806MD

TD0806MD DITEX (Digital Telemetric Servo) is a very precise digital servo that was developed to overcome all existing servos in accuracy, safety, power and speed . The DITEX servo includes fully digital feedback that replaces analog potentiometers. DITEX is a true digital servo!

DITEX servos are powered by premium coreless motors that offer high torque. Servers provide telemetry data and are fully programmable (via USB adapter and DITEX Manager software). Customers offer the option of personalized personal settings.

Properties

• Duplex EX telemetry data.
• Fully digital functions.
• Large supply voltage range.
• Fully digital feedback sensor (position).
• 16-bit positioning.
• DSP 32 processor (80 MHz).
• Coreless engine.
• Precision metal box.
• Precision metal gears.
• Ball bowl.

Parameters
Dimensions: 35 x 15 x 32 mm
Weight: 42 g
Supply voltage: 4.8 - 8.4 V
Torque (6.0V): 5.6 Kg / cm
Torque (7.4V): 7,1 Kg / cm
Torque (8,4V): 7,6 Kg / cm
Speed ​​(6,0V): 0,09 s
Speed ​​(7,4V): 0,06 s
Speed ​​(8,4V): 0, 05 s
