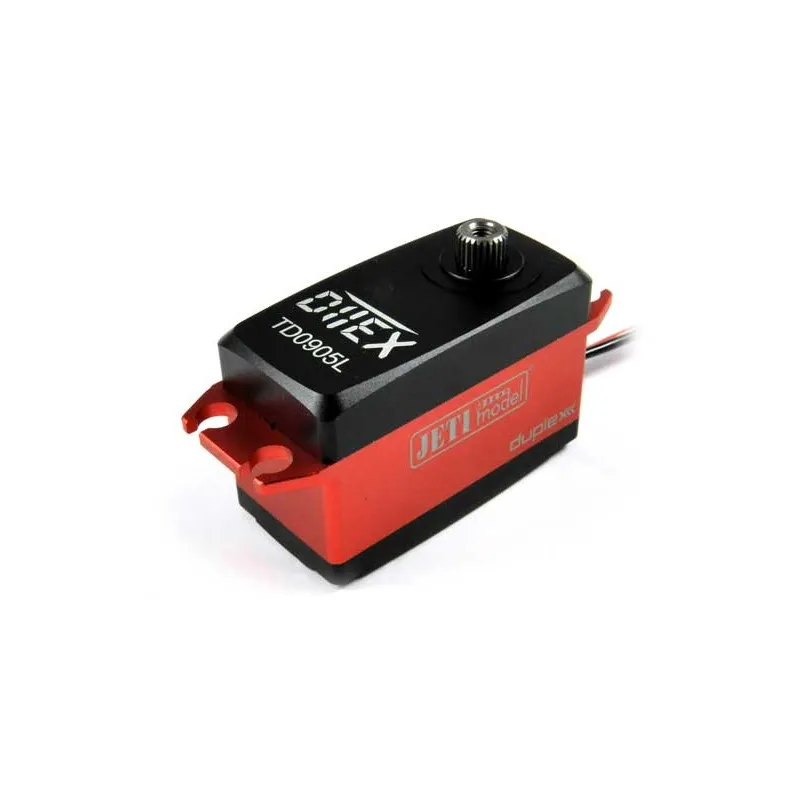

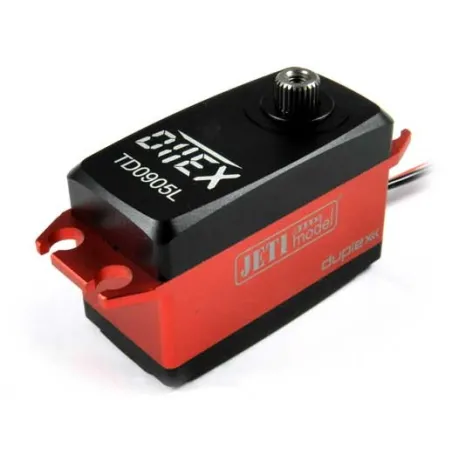

Jeti Ditex TD0905L Low line Servo
£123.89
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Despite its low height, which allows installation even in space-constrained applications, the TD0905L impresses with a force of 85 Ncm at 8.4V. The sensational positioning speed of 0.05sec / 60 ° with maximum precision make this servo one of the fastest servos on the market. Of course all innovative DITEX technologies are used in the TD0905L.
Model | DITEX TD0905L |
Length | 40.8 mm |
Width | 20 mm |
Height | 26 mm |
Weight | 56 g |
Torque @ 6.0V | 5.4 kg-cm |
Speed @ 6.0V | 0.08 sec / 60 ° |
Torque @ 7.4V | 7.7 kg-cm |
Speed @ 7.4V | 0.06 sec / 60 ° |
Torque @ 8.4V | 8.5 kg - cm |
Speed @ 8.4V | 0.05 sec / 60 ° |
Gear Train | Metal / Metal |
Cart train support | Ball bearing / ball bearing |
Casing | Alu / Alu |
Output | 25 tooth spline (Futaba) |
Recomended input voltage | 4.8 - 10V |
Maximum input voltage | 10.0V |
TD0905L
