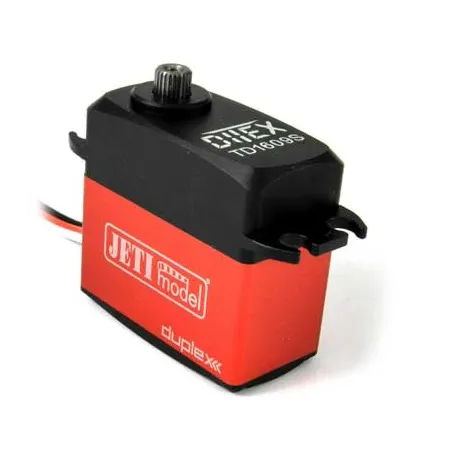

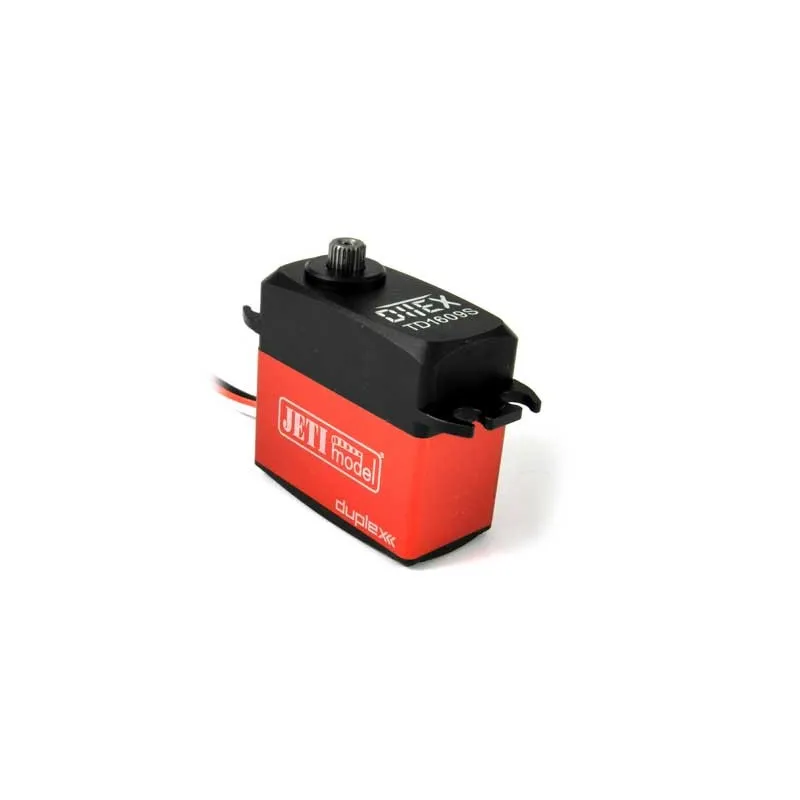

Jeti Ditex Servo TD1609S
True 16.2 kg-cm of force at 8.4V with a 0.08sec / 60 ° positioning speed and the innovative DITEX technologies are perfect for all applications where speed, power, precision and reliability are required.
Perfect for 3D helicopters, aerobatic and jet models. A perfect all-rounder for all common applications in model making.
Model |
DITEX TD1609S |
Length |
40 mm |
Width |
20 mm |
Height |
37 mm |
Weight |
63 g |
Torque @ 6.0V |
11.3 kg-cm |
Speed @ 6.0V |
0.111 sec / 60 ° |
Torque @ 7.4V |
13.2 kg-cm |
Speed @ 7.4V |
0.1 sec / 60 ° |
Torque @ 8.4V |
162 Ncm |
Speed @ 8.4V |
0.08 sec / 60 ° |
Gear train |
Metal / Metal |
Gear Support |
Ball bearing / ball bearing |
Casing |
Alu / Plastic |
Output |
25 tooth spline (Futaba) |
Recomended input voltage |
4.8 - 10.00 V |
Max. input voltage |
10.0V |
