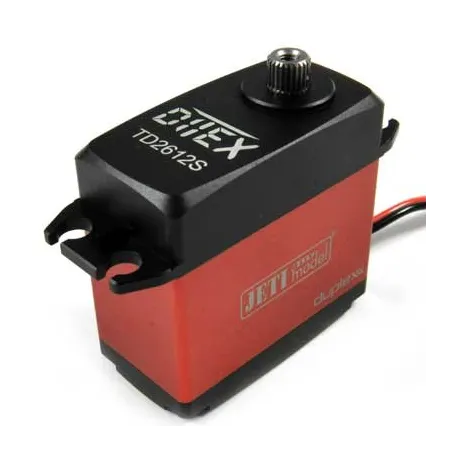

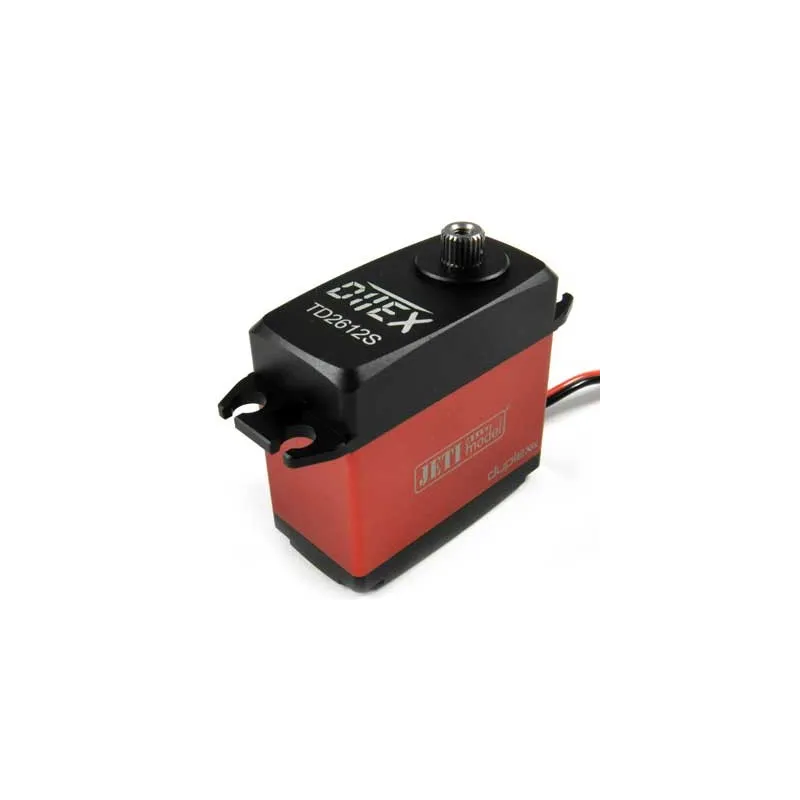

Jeti Ditex TD2612S
True 265 Ncm of force at 8.4V with a 0.12sec / 60 ° positioning speed and the innovative DITEX technologies are perfect for all applications where power, precision and reliability are required. For example, large 3D engine and jet models.
Name |
DITEX TD2612S |
Length |
40 mm |
Width |
20 mm |
Height |
37 mm |
Weight |
75 g |
Torque @ 6.0V |
1.8 kg-cm |
Speed @ 6.0V |
0.17 sec / 60 ° |
Torque @ 7.4V |
2.6 kg-cm |
Speed @ 7.4V |
0.14 sec / 60 ° |
Torque @ 8.4V |
26.5 kg-cm |
Speed @ 8.4V |
0.12 sec / 60 ° |
Transmission |
Metal / Metal |
Support |
Ball bearing / ball bearing |
Casing |
Alu / Alu |
Output |
25 tooth spline (Futaba) |
Use |
Aircraft / Aircraft |
Recommended input voltage |
4.8 - 10 V |
Max. input voltage |
10.0V |
