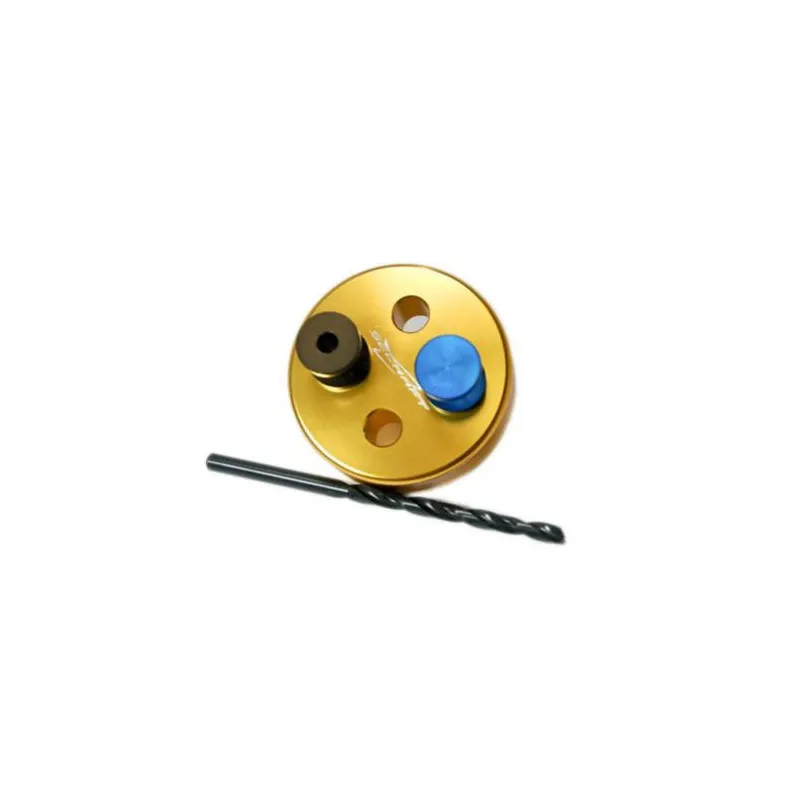

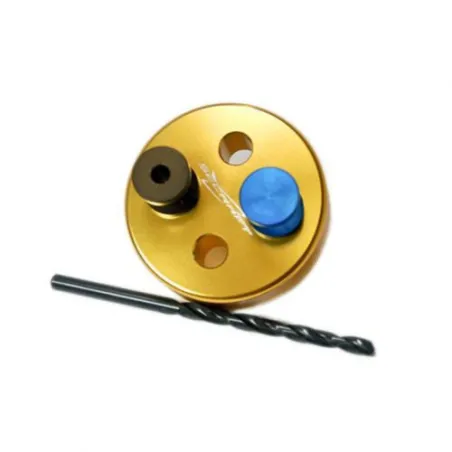

PROP DRILL JIG SET 4SS(Drill:4.3mm) GOLD
£32.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Product Description |
Drilling Jig Set 4SS (Drill: 4.3mm) - Engine: DLE30
Mounting: 4 Hole
Hole Diameter: 26mm
Weight: 105g
Drill: 4.3mm Included
Material: |
Jig(Gold): AL6061 (anodized)
Rotation prevention Pin(Blue): AL6061 (anodized)
Drill Holders: 7075 (Hard coating)
Prop drill jig for 4 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill.
Instructions
Step 1: insert jig into the hole to the propeller.
Step 2: After inserting jig, drill the first hole using the silver drill guide.
Step 3: Place rotation prevention pin (red) into the drilled hole.
Step 4: Drill the remainder of the holes using the drill guide.
