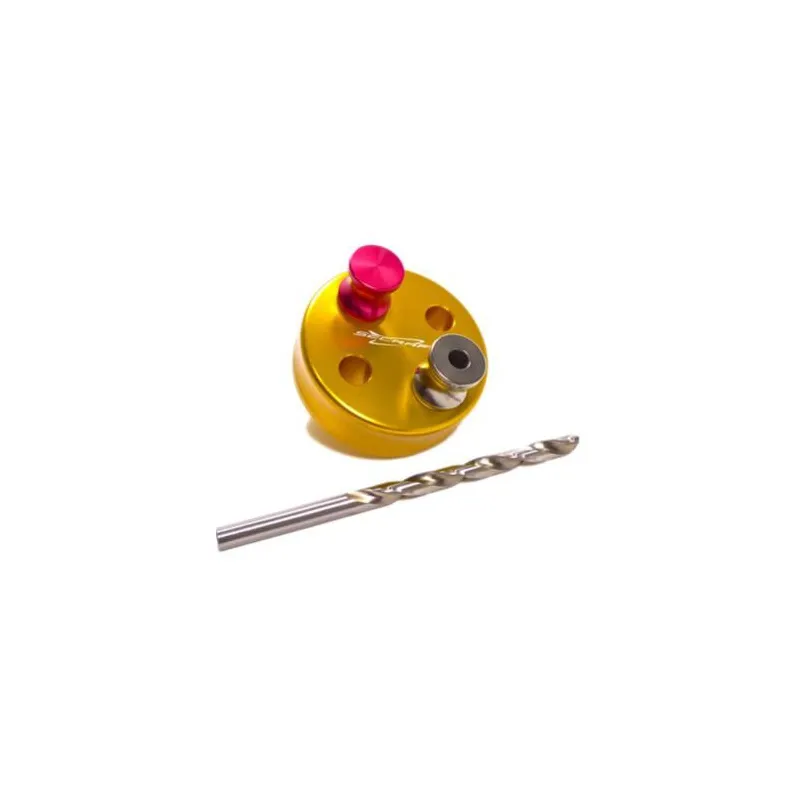

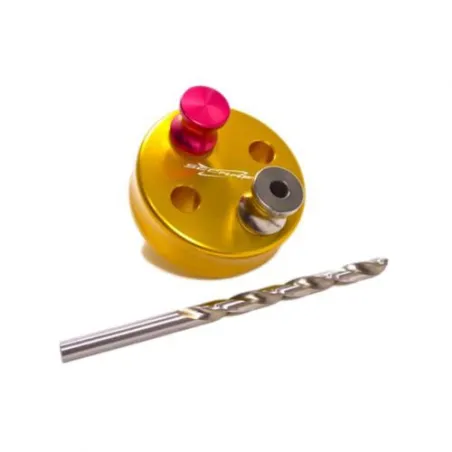

PROP DRILL JIG SET 4S(Drill:5.1mm) GOLD

Drilling Jig Set 4S (Drill: 5.1mm) - Engine: DA50, DL50, DL55, EVO 54

Mounting: 4 Hole

Hole Diameter: 30mm

Weight: 105g

Drill: 5.1mm Included

Jig(Gold): AL6061 (anodized)

Rotation prevention Pin(Red): AL6061 (anodized)

Drill Holders(Silver): SKD11 (heat treatment)

Prop drill jig for 4 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill.

Instructions

Step 1: insert jig into the hole to the propeller.

Step 2: After inserting jig, drill the first hole using the silver drill guide.

Step 3: Place rotation prevention pin (red) into the drilled hole.

Step 4: Drill the remainder of the holes using the drill guide.
