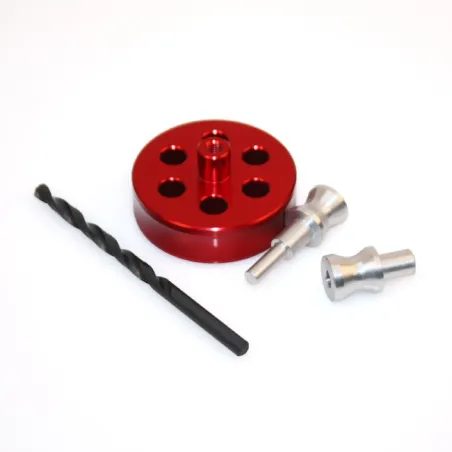

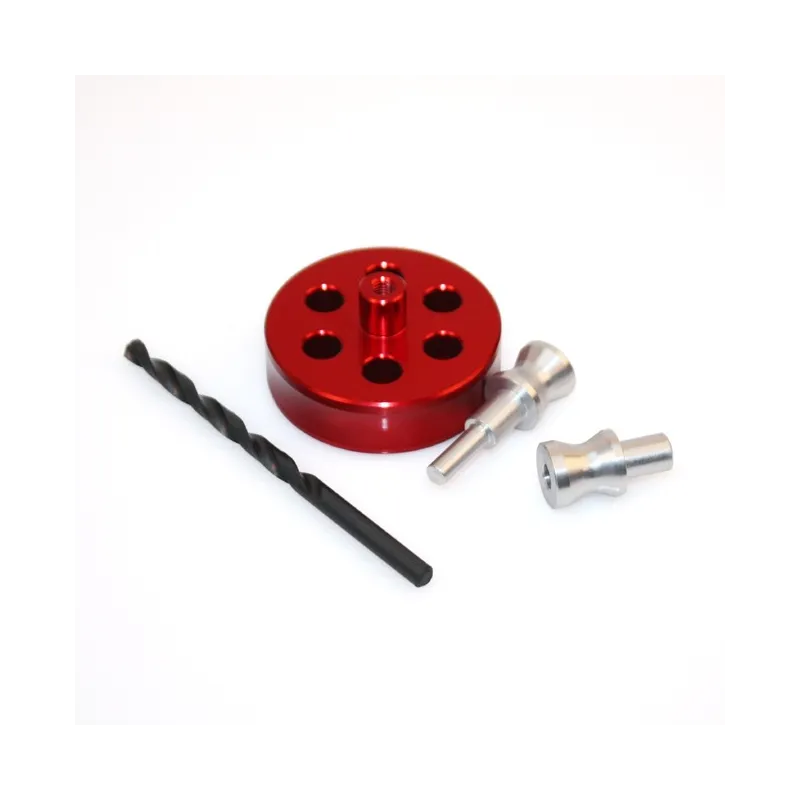

PROP DRILL JIG SET 6M(Drill:5.1mm) RED

Product Description

Drilling Jig Set 6M (Drill: 5.1mm) - Engine: DA100, DL100, 3W100, DA85, MVVS58, 3W55, 3W50, EVO58, DA120

Mounting: 6 Hole

Hole circle: 29mm

weight: 101g

Drill : 5.1mm Included Material

Jig(Red): AL6061 (anodized)

Rotation prevention Pin(Red): AL6061 (anodized)

Drill Holders(Silver): SKD11 (heat treatment)

Prop drill jig for 6 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill.

Instructions

Step 1: insert jig into the hole to the propeller.

Step 2: After inserting jig, drill the first hole using the silver drill guide.

Step 3: Place rotation prevention pin (red) into the drilled hole.

Step 4: Drill the remainder of the holes using the drill guide.
