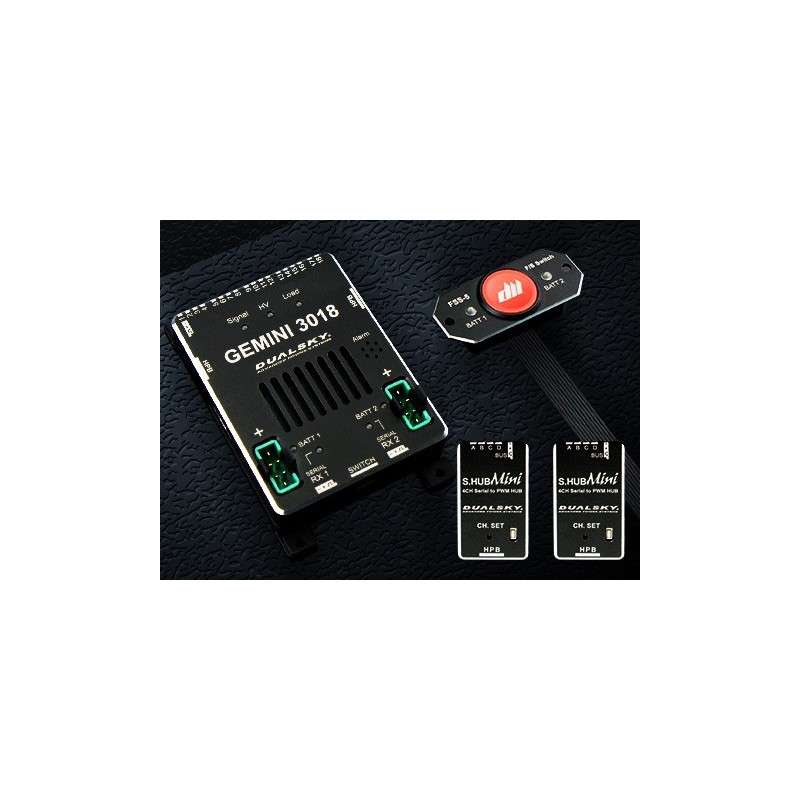

GEMINI 3018 DELUXE + 2 S.HUB MINI
£259.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Dualsky Gemini 3018 redundant power supply (Deluxe version) with 2 S.HUB Mini.
Features
- Dual battery (2S, LIPO) redundant input
- Linear regulated output capability up to 30A
- Dual S.BUS1/2 signal redundant input
- 18-channel PWM output and 2 HPB outputs
- Automatically synchronise output refresh rate with receiver
- Equipped with new FSS-5 fail safe electronic switch
- Supports high voltage output
- All aluminum alloy CNC housing
- Suitable for large gasoline models, jets and drones
Dimensions
S.HUB Mini
Features
- S.HUB Mini with one S.Bus input and 4 Channels PWM output
- Output channels can be programmed
- High current input port
Specifications
| Dimension: | L 37.5 x W 22.2 x H 11mm |
|---|---|
| Weight: | 13.2g |
| Working Voltage: | 4.8V to 8.4V |
| Working Current: | 10A constant, 15A peak |
| Number of serial input: | Single |
| Protocol supported: | Futaba S.Bus / S.Bus2 |
| Number of PWM output: | 4 of 16 |
| S.Bus output relay: | Yes, directly |
| Voltage Regulator: | N/A |
| Casing material: | Fully aluminium alloy |
| Applications: | For the model which controlled via bus.Connect the PWM servos at the distal node. |
Dimensions
DUA064
