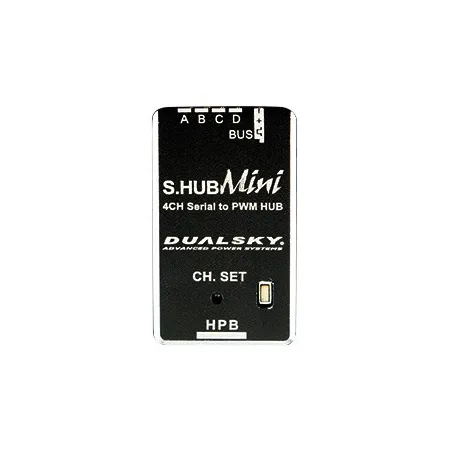

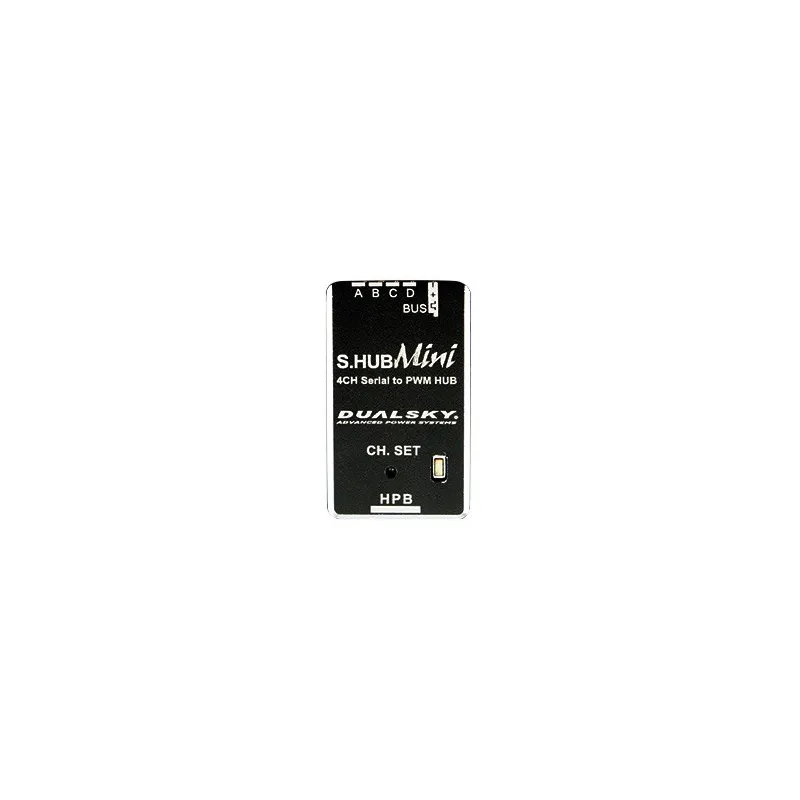

S.HUB MINI
£46.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Features
- S.HUB Mini with one S.Bus input and 4 Channels PWM output
- Output channels can be programmed
- High current input port
Specifications
| Dimension: | L 37.5 x W 22.2 x H 11mm |
|---|---|
| Weight: | 13.2g |
| Working Voltage: | 4.8V to 8.4V |
| Working Current: | 10A constant, 15A peak |
| Number of serial input: | Single |
| Protocol supported: | Futaba S.Bus / S.Bus2 |
| Number of PWM output: | 4 of 16 |
| S.Bus output relay: | Yes, directly |
| Voltage Regulator: | N/A |
| Casing material: | Fully aluminium alloy |
| Applications: | For the model which controlled via bus.Connect the PWM servos at the distal node. |
Dimensions
DUA065
