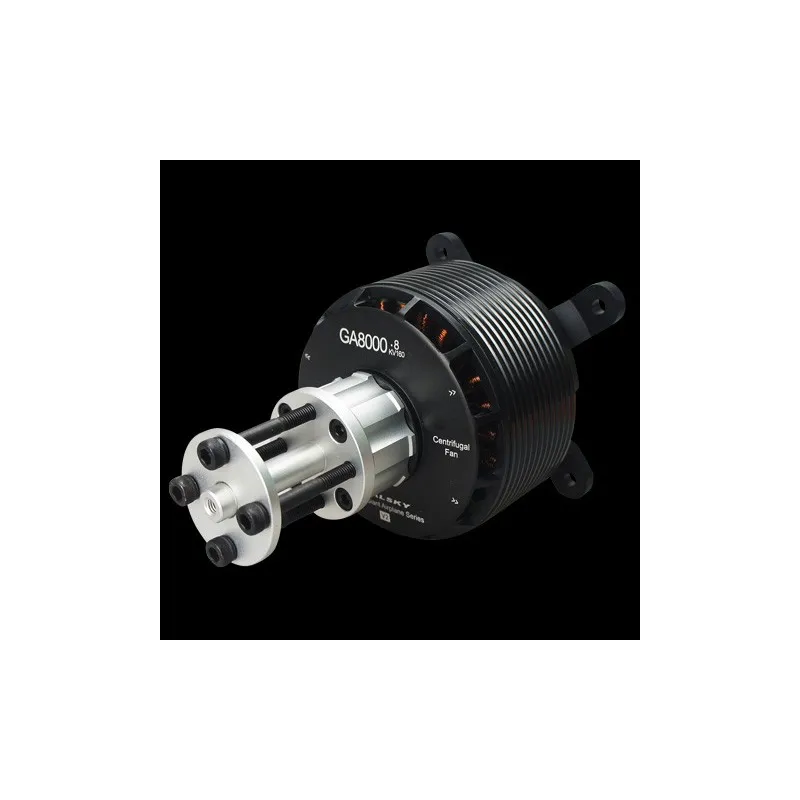

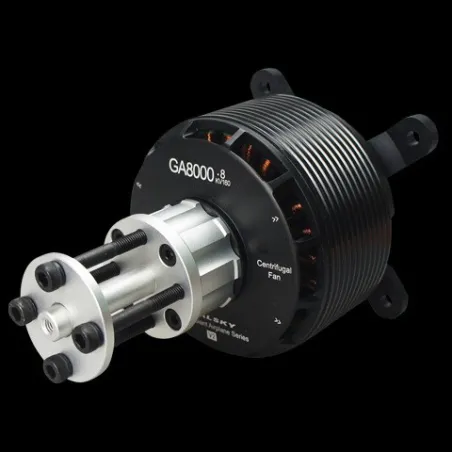

GA8000.8 MOTOR 160KV 1150g 8000w
£349.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Dualsky GA8000.8 series X-Motor designed for 80-120cc class UAV, 3D aerobatic and scale warbird aircraft.
Specifications:
| RPM/V: | 160 RPM/V |
|---|---|
| Weight w/o accessories: | 1140g |
| Outer Diameter: | 90.2mm |
| Length w/ mounts: | 106mm |
| Length(overall): | 146mm |
| Diameter of Shaft: | 12mm (Internal, hollow), 10mm (Output) |
| Mounting holes pitch: | 100mm |
| Slots,Poles: | 24, 28 |
| Idle Current(Io) @10V: | 2.35A |
| Resistance(Ri): | 13.2mOhm |
| Nominal Voltage(V): | 51.8V, 12-14S Lipo |
| Peak power[15s]: | 8200W (11.3HP) |
| Bursts current[15s] & MAX torque: | 160A, 13.56N*M |
| Cruising power[8 mins]: | 4100W (5.6HP) |
| Recommended ESC & Settings: | 160A-200A HV Series |
| Propeller: | 12S: 26x10, 27x10, 28x9, 28x10 14S: 25x10, 26x10, 27x8, 27x9CF (Do Not Use Electric Propeller) |
| Weight of sports airplane: | up to 28kg |
| Weight of 3D airplane: | up to 14kg |
| Applications: | For 80-120cc class UAV, 3D and scale warbird airplane |
DUA052
