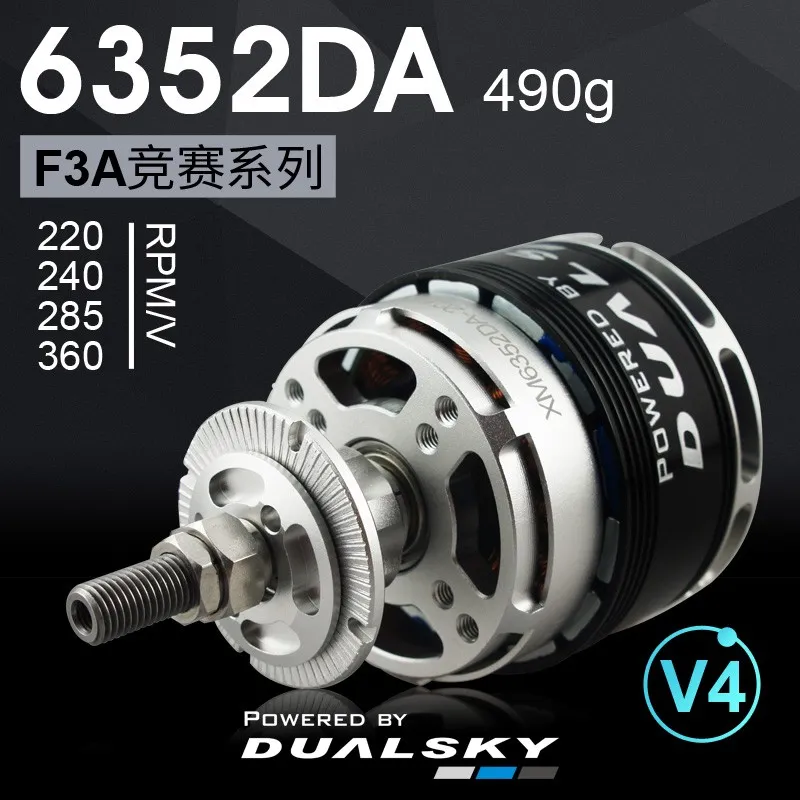

XM6352DA-26 V4 F3A COMPETITION 220 RPM/V
£219.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
V4 Features:
- The new fourth-generation design, redesigned all parts based on the DA family design elements.
- XM6352DA V4, corresponding to 3000 watts class, suitable for lightweight F3A airplanes and up to 12kg gliders.
- XM6355DA V4 output is up to 3700 watts. It is the standard power for F3A, for example: bipe F3A. It is also suitable for gliders up to 20kg.
- New curved magnets. Torque in the middle RPM range is increased by 12% to 15% (compared to DA V3 motor).
- Hollow shaft and lightweight parts, the overall weight is reduced by 7% to 10%.
- With 3 EZO bearings and precise balanced rotors, the motors can be maintenance-free up to 1000 flights.
- Optimized rear support bearing (mount)
- The total length of two types of motor are uniform, the accessories are interchangeable, and they can be replaced seamlessly.
- The DUALSKY SUMMIT 100HV (Pattern Flight Edition) ESC is recommended. Its 32-bit core, smart timing and energy recovery brakes provide excellent efficiency and sense of control.
Specification
| Motor Name | XM6352DA-16 | XM6352DA-20 | XM6352DA-24 | XM6352DA-26 |
|---|---|---|---|---|
| RPM/V | 360 | 285 | 240 | 220 |
| Stator (Dx L) | 5322 | 5322 | 5322 | 5322 |
| Weight (g) | 490 | 490 | 490 | 490 |
| Ri (mOhm) | 16.5 | 26.8 | 36.0 | 43.0 |
| Io@10V(A) | 1.50 | 1.10 | 0.80 | 0.70 |
| Voltage (V) | 24 | 32 | 32 | 40 |
| Peak Current (A) | 98 | 85 | 80 | 75 |
| Peak Power (W) | 2352 | 2720 | 2560 | 3000 |
| Torque (N*M) | 3.25 | 3.56 | 3.98 | 4.07 |
XM6352DA V4 corresponding to 3000 watts class, suitable for lightweight F3A airplanes and upto 12kg gliders.
Dimensions
DUA078
Specific References
