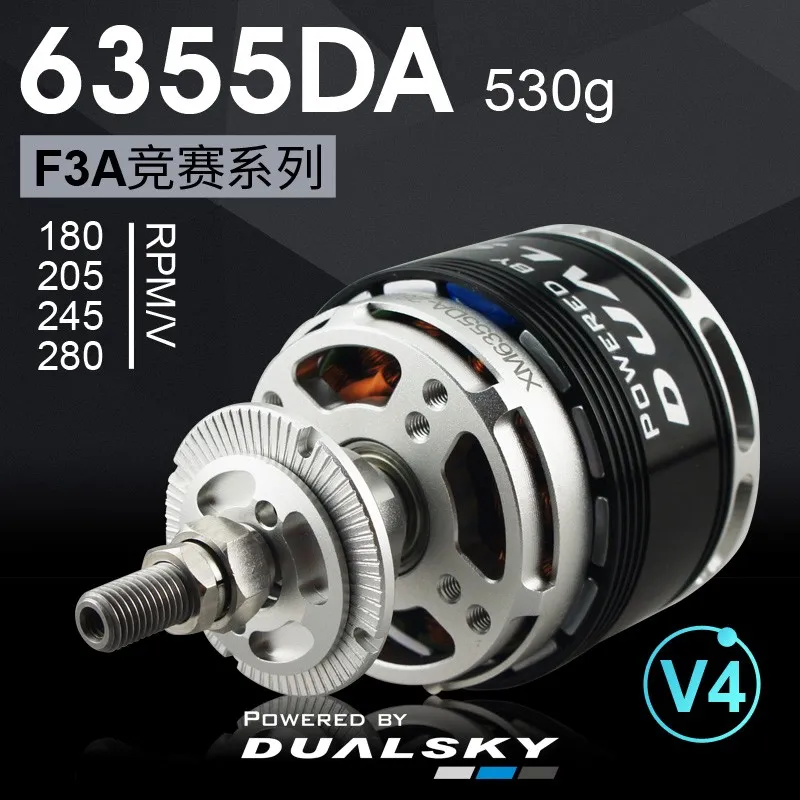

XM6355DA-25 V4 F3A COMPETITION 205 RPM/V
£249.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
V4 Features:
- The new fourth-generation design, redesigned all parts based on the DA family design elements.
- XM6352DA V4, corresponding to 3000 watts class, suitable for lightweight F3A airplanes and up to 12kg gliders.
- XM6355DA V4 output is up to 3700 watts. It is the standard power for F3A, for example: bipe F3A. It is also suitable for gliders up to 20kg.
- New curved magnets. Torque in the middle RPM range is increased by 12% to 15% (compared to DA V3 motor).
- Hollow shaft and lightweight parts, the overall weight is reduced by 7% to 10%.
- With 3 EZO bearings and precise balanced rotors, the motors can be maintenance-free up to 1000 flights.
- Optimized rear support bearing (mount)
- The total length of two types of motor are uniform, the accessories are interchangeable, and they can be replaced seamlessly.
- The DUALSKY SUMMIT 100HV (Pattern Flight Edition) ESC is recommended. Its 32-bit core, smart timing and energy recovery brakes provide excellent efficiency and sense of control.
Specification
| Motor Name | XM6355DA-18 | XM6355DA-21 | XM6355DA-25 | XM6355DA-28 |
|---|---|---|---|---|
| RPM/V | 280 | 245 | 205 | 180 |
| Stator (Dx L) | 5325 | 5325 | 5325 | 5325 |
| Weight (g) | 530 | 530 | 530 | 530 |
| Ri (mOhm) | 21.5 | 27.5 | 39.0 | 51.0 |
| Io@10V(A) | 1.15 | 0.90 | 0.72 | 0.60 |
| Voltage (V) | 32 | 32 | 40 | 48 |
| Peak Current (A) | 97 | 92 | 87 | 78 |
| Peak Power (W) | 3104 | 2944 | 3480 | 3744 |
| Torque (N*M) | 4.14 | 4.48 | 5.07 | 5.17 |
XM6352DA V4 output is upto 3700 watts. It is the standard power for F3A. It is also suitable for gliders upto 20kg
Dimensions
DUA081
