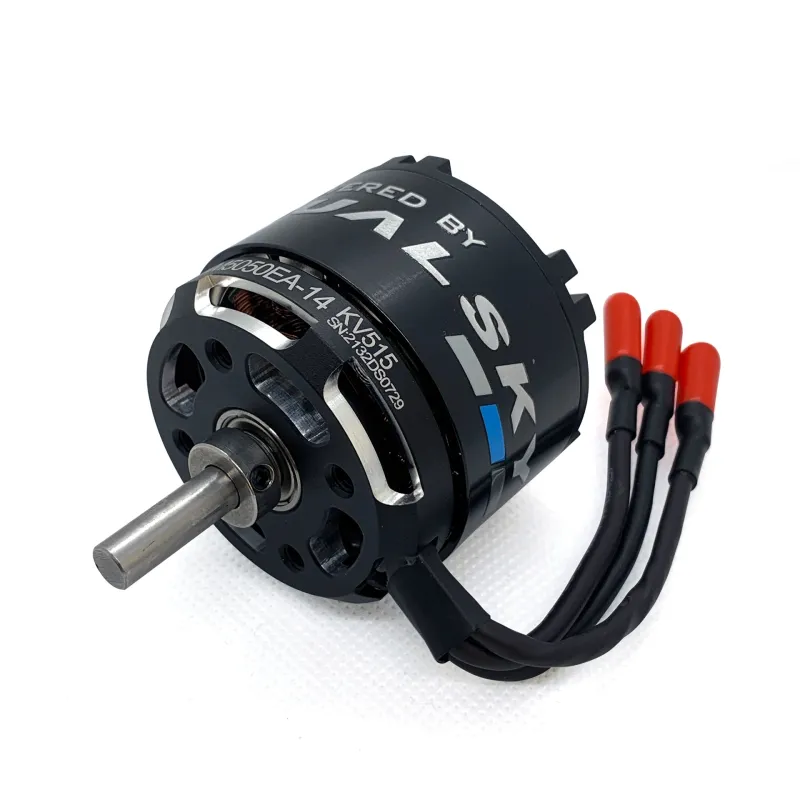

XM5050EA-14 (515KV) V3 BRUSHELSS MOTOR
£99.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
EA V3 Features:
- 1.New appearance,new design all parts,parts strength and heat dissipation channel to further enhance.
- 2.With a wider arc magnet,Japanese 0.20mm silicon steel laminiation,providing strong torque.
- 3.Rotor dual balancing process,NMB bearings,smooth acceleration and deceleration,can bear a higher speed.
- 4.It adopts 220-class enamelled wire and the high-temperature epoxy,with a five-star overload resistance grace.
- 5.Multi-purpose design to support both-end installation namely:Firewall Front installation(default) and firewall back installation.
Specification
| Motor Name | XM5050EA-14 V3 |
|---|---|
| KV | 515 |
| Weight (g) | 292 |
| Dimensions (D x L) (mm) | 49.5 x 48.2 |
| Diameter of Shaft (mm) | 6.0 |
| Spec. of Mounting Holes | 4-M3, 30/30 |
| Input Connectors | DB4 |
| Dimensions of Stator (mm) | 4120 |
| Slots & Poles | 12N14P |
| Ri(mOhm) | 18.5 |
| Io@10V (A) | 1.5 |
| No. of Cells (LiPo) | 5.61 |
| Efficiency Current (A) | 32.5 |
| Burst Current (15S) (A) | 65 |
| Peak Power (15S) (W) | 1560 |
| Peak Torque (N-M) | 1.51 |
| Recommended ESC | Summit 100 |
| Recommended Propeller | 5S: 16 x 8E, 17 x 8E 6S1: 15 x 8E, 16 x 8E2 |
| Application | 70E, .50 - .60 2-Stroke up to .82 4-Stroke |
1 Suggested working voltage (NOC)
2 Good throttle management needed
Dimensions
DUA088
