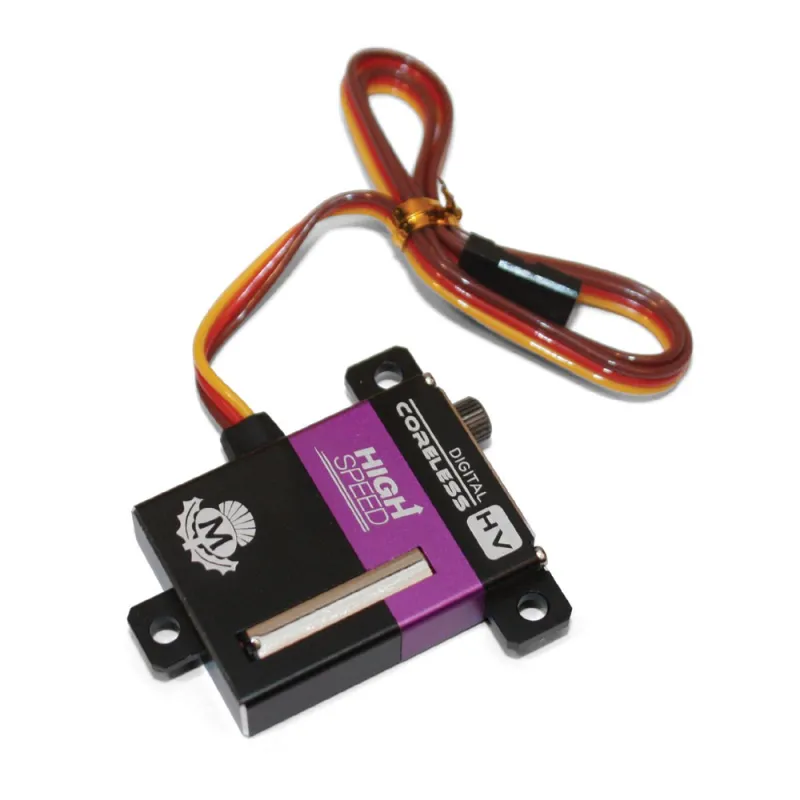

      MG2107WHV 6.6kg/0.10s HV WING SERVO
      MG2107WHV 6.6kg/0.10s HV WING SERVO

      MG2107WHV 6.6kg/0.10s HV WING SERVO

      Review (0)
      £39.95
      Tax Included
      Last items in stock
      Quantity :
      100% secure payments
      Write your review
      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
        aero-icon metalgear-icon metalcase-icon

        Features:

        • High Performance, Digital High Voltage Wing Servo
        • High-Precision Metal Gears With Hard Anodising
        • Full CNC Aluminium Case, with Anodised Purple Centre Case
        • High Quality Coreless Motor
        • Ultra-Thin 8mm Thickness
        • Dual Ball Bearings

        Overview

        The MG2107WHV is an ultra thin (8mm), high speed wing servo, part of MacGregor's range of high voltage digital servos designed for General use in RC Aeroplanes.

        MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

        Specifications:

        Dead band:2µs
        Working frequency:1520µs / 330hz
        Motor:Coreless Motor
        Gearset:Full Metal
        Operating Voltage:5.0 ~ 8.4V
        Operating Speed (6.0V):0.15sec/60°
        Operating Speed (8.4V):0.10sec/60°
        Stall Torque (6.0V):4.7kg.cm
        Stall Torque (8.4V):6.6kg.cm
        Dimensions:25 x 8 x 34.3mm
        Weight:21g (0.74oz)
        Connector Wire Length:JR 300mm
        Bearing:2BB
        MG2107WHV Servo Drawing
        MAC2107WHV
