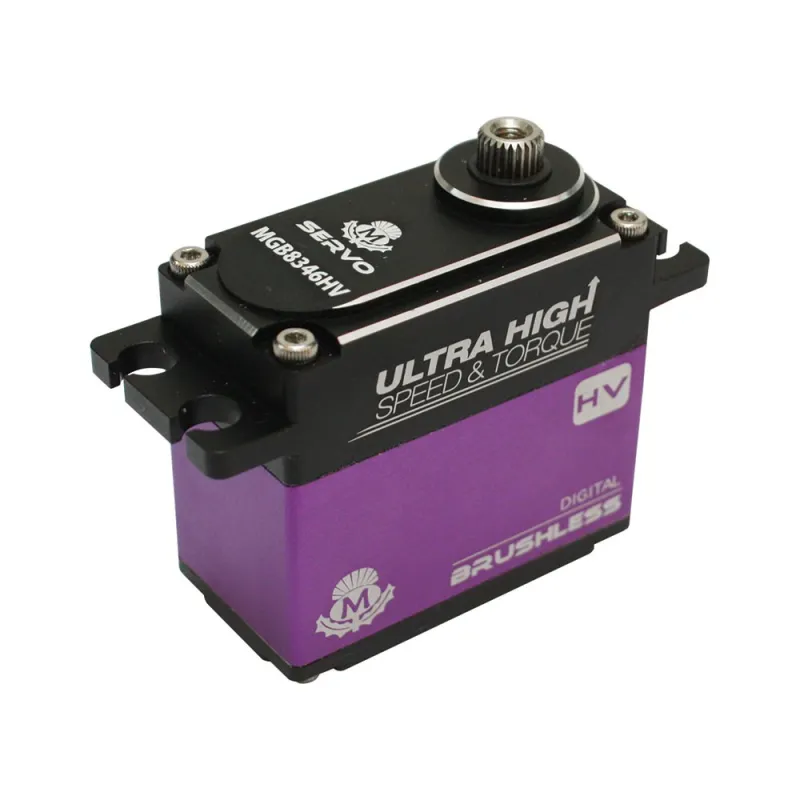

Macgregor 38Kg/0.10s B/LESS HV SERVO MGB8346HV
£109.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
FEATURES:
- High Performance, Standard Size, Multi Voltage Digital Servo
- High-Precision Steel Gears
- Full CNC Aluminium Case with Anodised Purple Centre Case
- High Quality Brushless Motor
- Dual Ball Bearing
- Long Working Life
- 25T (Futabe Type) Spline
- JR style plug and lead (300mm)
- Waterproof IPX8 Grade
- 4096 Resolution
- Programmable
OVERVIEW
The MGB8346HV is a programmable waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
SPECIFICATIONS:
| Dead band: | 2µs |
|---|---|
| Working frequency: | 1520µs / 330hz |
| Motor: | Brushless Motor |
| Gearset: | Steel |
| Spline: | 25T |
| Operating Voltage: | 5.0 ~ 8.4V |
| Operating Speed (5.0V): | 0.17sec/60° |
| Operating Speed (6.0V): | 0.14sec/60° |
| Operating Speed (7.4V): | 0.11sec/60° |
| Operating Speed (8.4V): | 0.10sec/60° |
| Stall Torque (5.0V): | 22.6kg.cm |
| Stall Torque (6.0V): | 27.1kg.cm |
| Stall Torque (7.4V): | 33.5kg.cm |
| Stall Torque (8.4V): | 38.0kg.cm |
| Dimensions: | 40.6 x 21 x 37.6mm |
| Weight: | 83.7g |
| Connector Wire Length: | JR 300mm |
| Bearing: | 2BB |
MGB8346HV
