Jeti Addcap 1640
  • Jeti Addcap 1640
  • Jeti Addcap 1640
  • Jeti Addcap 1640
  • Jeti Addcap 1640

Jeti Addcap 1640

J-AC-1640
8595245910587
£17.45
Tax included
Quantity
Supplier Stock 1-3 days

Weight [g] 27
Dimensions [mm] 60 x 35 x 24
Input voltage max. [V] 59


Files for download

Manuals - AddCAP

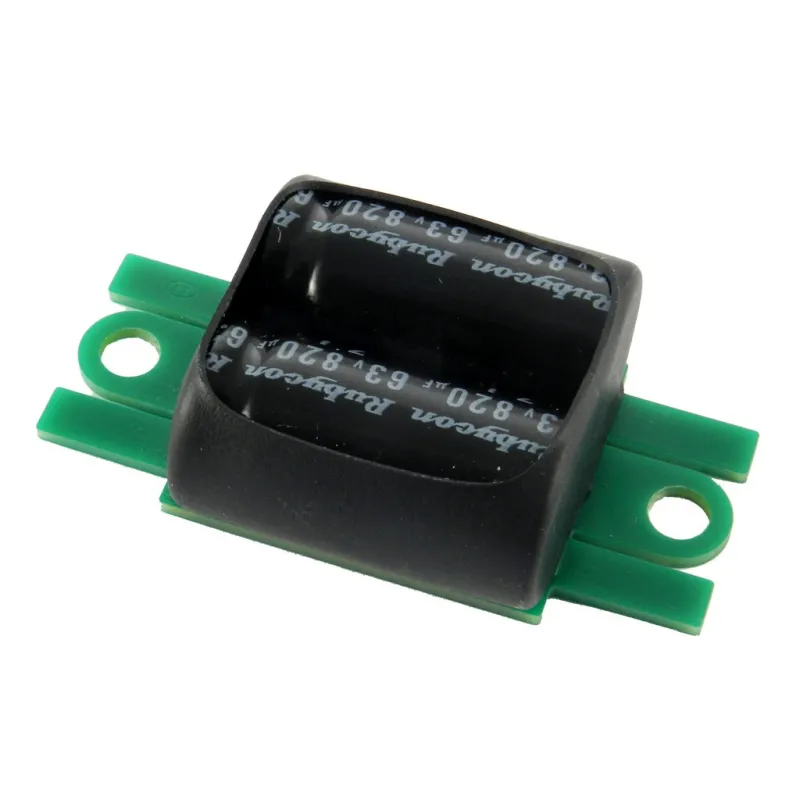

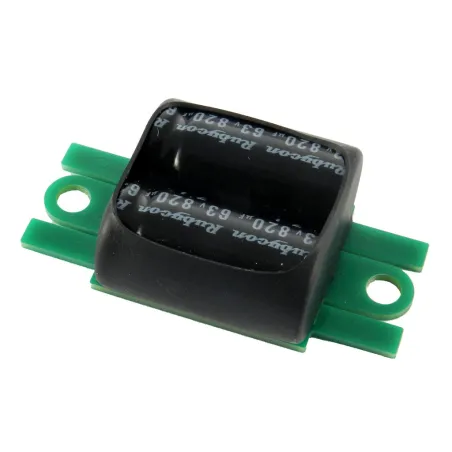

AddCAP 1640 is an add-on capacitor unit designed to enhance battery power supply for drive systems using low-impedence electric motors (1-2 turns). It should also be used when the wires from your battery to your ESC need to be lengthened more than 20cm (8 inches).




In case the wires are longer, use one AddCAP 1640 for each 20cm (8 inch) section. Another advantage of adding an additional capacitor is to reduce possible interference which may be caused by current moving through your power wires. Recommended for use with 2.5-6 mm2 (14AWG – 10AWG) wires.
