Jeti TU2
£105.55
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
| Weight [g] | 15 |
| Dimensions [mm] | 55 x 26 x 11 |
| Number of channels | 16 |
| Operational temperature [°C] | -10 ... 85 |
| Supply Voltage [V] | 3,5 - 16 |
| Average Current [mA] | 38 |
| Output Power [dBm] | 20 |
| Antenna [dBi] | 2 |
| Acoustic signalling of conditions | Yes |
Files for download
Manuals - Duplex EX
JETI Duplex EX Receiver Manual V3.22 [EN, DE] - English & German user manual for the receivers version 3.22 (6/2014)
JETI Duplex EX Manual V3.0 CZ - Czech user manual for Tx modules and receivers (6/2011)
JETI Duplex EX Manual V3.0 EN+DE - English & German user manual for Tx modules and receivers (6/2011)
Rx + RSat Jetibox Schema V3.0 CZ - Jetibox screen schemes of the receivers and satellites
Rx + Rsat Jetibox Schema V3.0 EN+DE - Jetibox screen schemes of the receivers and satellites
Rx + RSat Jetibox Scheme V3.0 FR - Jetibox screen schemes of the receivers and satellites

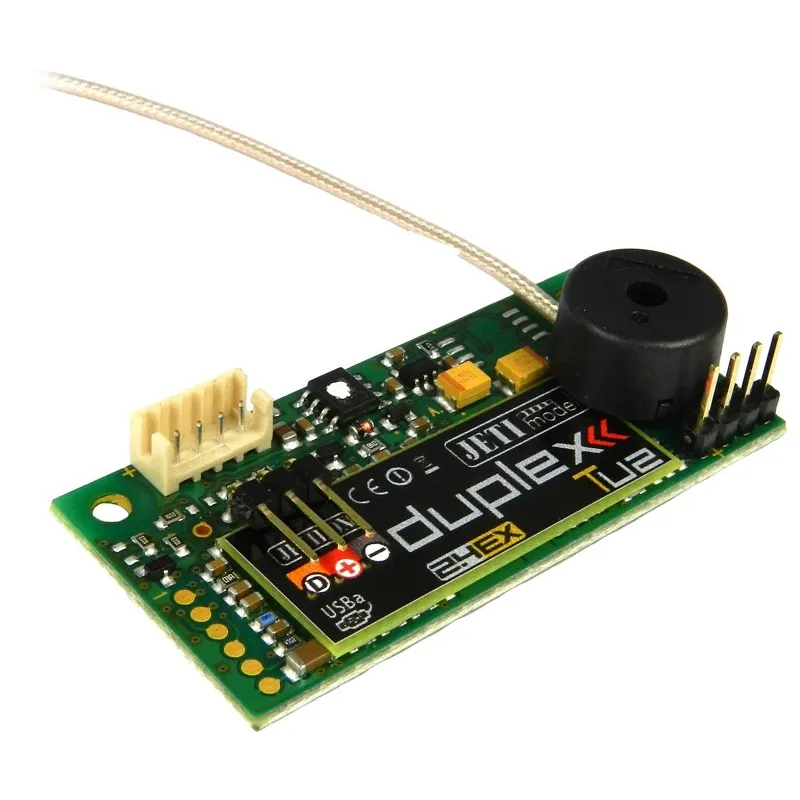

DUPLEX TU2 EX module is suitable for all transmitters, especially for those with non-exchangeable HF plug-in modules. Installation is possible into almost all types of transmitters. There are only two main requirements: A transmitter with the possibility of operation in PPM mode and space for the module in the transmitter. If needed, Duplex TU2 EX is also possible to put in the box and fit to the transmitter.
DUPLEX TU2 EX module is an enhanced version DUPLEX TU2. Along with the mounting kit it simplifies mounting SWTU2 to the transmitters. An assembly set VOICE-1 may be better adapted to the acoustic properties after incorporation into the transmitter.
Futaba:
- FC-16, FC-18 JUNIOR, T6EXHP, 12FG, 12Z, 14MZ, FX-18, FX-14, FX-30
Hitec:
- Laser 4, Laser 6, Flash 5, Optic 6 sport
Graupner:
- MC-10, MC-12, MC-14, MC-15, MC-16, MC-19, MC-22, MC-16-20,
- MX-12, MX-16s
Multiplex:
- Cockpit SX
- Profi 3000, 4000
Other brands of transmitters.
DUPLEX System EX is fully compatible with the previous version of the DUPLEX.
JDEX-TU2
Specific References
- EAN13
- 8595245908782
