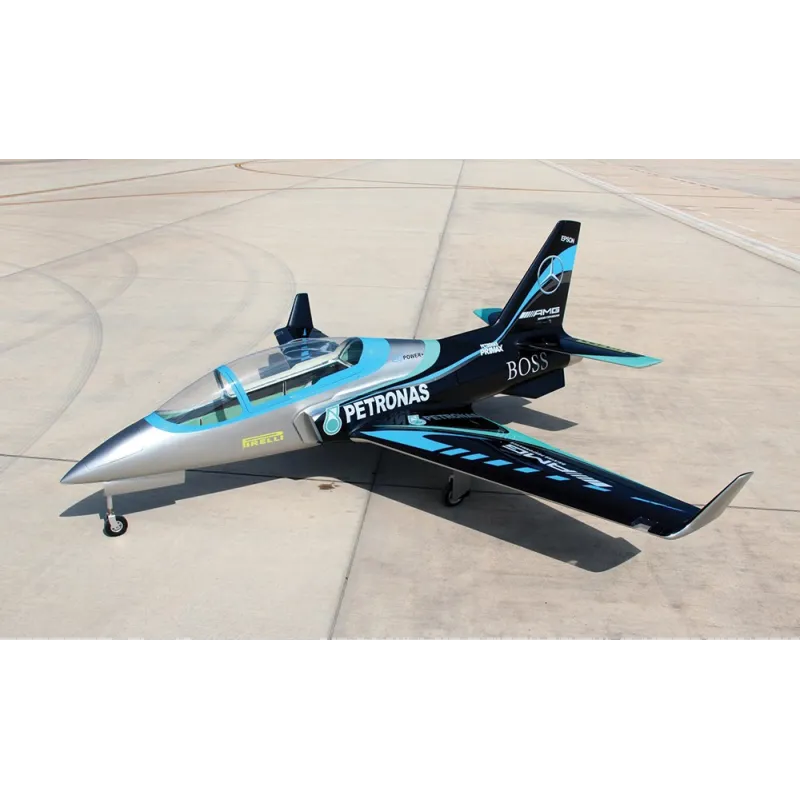

VIPER 3.2M COMPOSITE JET (RETRACT VER.)

Features:

• Full composite construction, lightweight and strong
• Removable two piece fuselage, the tailpipe mounts only on the rear fuselage section, allowing for easy removal and transport.
• Removable rudder, two piece wing and two piece stabilizer all for easy transport
• Painted outside the mold so no seam lines
• Pre-installed tubes for servo extension leads
• Servo operated nose gear door. Mains attached direct to struts.

Description

Viperjets are synonymous for a great flying jet, and this one really fulfils with expectations. Fast, slow, scale, acrobatic, fun, easy, it simply ticks all the boxes for your next jet!

Included Hardware

• Complete air frame (including carbon wing-tubes and fibreglass control horns)
• Pilot-RC electric retracts and electric brakes
• Scale cockpit (minus pilot)
• Dual wall tail pipe (for 160-310N turbines)
• 6L kevlar fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• 2L smoke tank and fuel tubing pre-prepared, fuel dot and breather valve.
• Aluminium air trap UAT
• Pre-prepared pushrods with ball links

Required Hardware

Turbine: 160-310N

Servos: 9 high torque (minimum 20kg) // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder, x1 for nose gear door and x1 for steering. Rudder and Flap servos are recommended to be +27kg)

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

Specification:

Build Manual

Aileron: 27mm, Rudder: 44mm, Elevator: 38mm. Flap: 38mm for take off and 82mm for landing.

The CG is 305mm from the front leading edge on the root of the wing.
