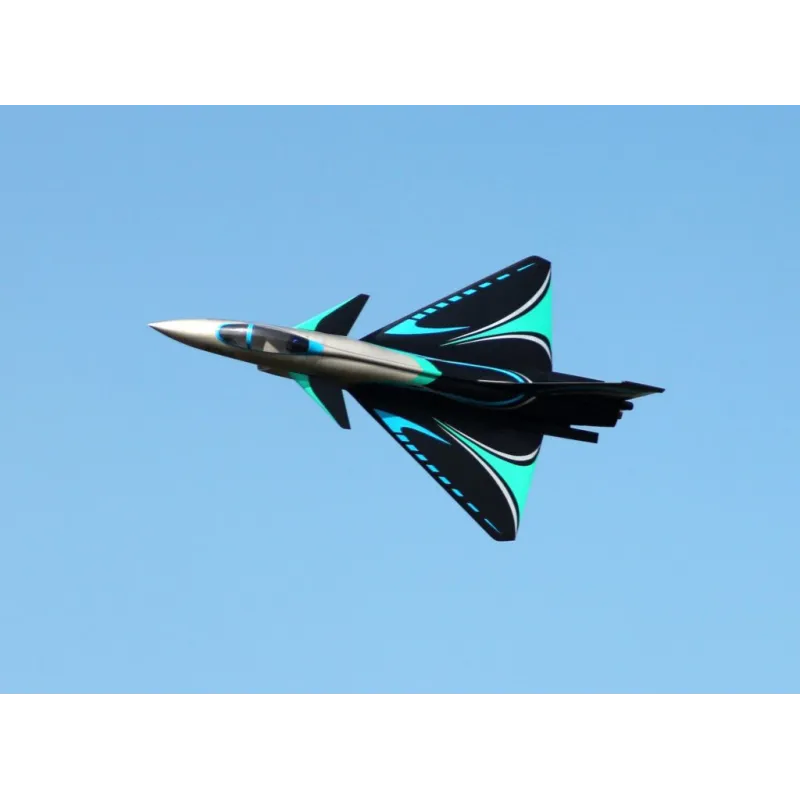

J-10 2.84M 3D FULL COMPOSITE JET(RETRAC
£3,599.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Features
- Extremely lightweight full composite construction especially designed for outstanding 3D performance.
- Painted outside the mold so no seam lines.
- Ultra strong and light weight landing gear mounts, with factory installed blind nuts so mounting is just plug and play.
- Split fuselage design is joined with 5 screws and only batteries are installed in the nose section, meaning very easy connections and quick assembly at the field.
- Specially designed easy access to turbine for speedy installation.
- Wings are secured from the top.
- Two piece wing for easy transport.
- Removable 150mm pitot tube.
Description
When you want the king of scale 3D jet's, you want Pilot-RC's J-10B!
World known for it's amazing 3D capabilities, while still not straying too far from the realm of what could almost be scale flying due to it's delta wing shape and high alpha performance.
Designed with the latest 3D tendencies, the technologies now available and the most popular power plant options on the market, this J-10B is both light, strong and with flying characteristics to match the killer looks, whether you want simple acrobatics on unlimited 3D, this is the machine for you.
Select one of the several aggressive colour schemes and really stand out from the crowd at your next event.
Included Hardware
- Complete air frame (including carbon wing-tubes and pre-installed and painted fibreglass control horns)
- Servo extension leads
- Vector thrust pipe
- 4000ml fuel tank (average 7-8 min with 210N size turbines)
- 250ml UAT tank
- Pre-prepared pushrods with ball links.
- Pilot-RC Electric Retracts and Electric Brakes
Also available: Kit Only (PIL639)
Also available: Turbine Ready version (PIL641). Includes all the above, plus x7 Pilot-RC servos, all pre-installed. Just add your own turbine of choice.
Required Hardware
Turbine: 120-160N for normal sport flying / 180-220N for 3D vector flight – Avoid high speed high G flying
Servos: 7 Total (6 standard size + 1 medium size)
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
Specifications
| Wingspan: | 66in (1.67m) |
|---|---|
| Wing Area: | 1748 sq in (11276sq cm) |
| Fuselage length: | 107in (2.7m) | 112in (2.85m) Including 150mm Pitot Tube |
| Weight: | 10.6kg (23.3lbs) with K210 turbine, dry weight and without batteries |
Video
Pilot-RC J-10B 2.84m (112in) Composite Jet
- Turbine: Kingtech 210N plus smoke system
- Gyro: Powerbox-Systems iGyro 3e
Pilot-RC J-10B 2.84m (112in) Composite Jet - Light Set-up 180N Turbine
- Turbine: Enjet 180N
- Gyro: Powerbox-Systems iGyro 3e
Build Details
CENTER OF GRAVITY:
- 315-330mm from the leading edge of the wing root
CONTROL THROWS FOR NORMAL FLIGHT:
- Aileron/Elevator: 21mm
- Rudder:22mm
- Canard: 21mm
- Vector elevator: 19mm
- Vector rudder: 9mm
CONTROL THROWS FOR 3D FLIGHT:
- Aileron/Elevator: 40mm
- Rudder:30mm
- Canard: 36mm
- Vector elevator: 28mm
- Vector rudder: 20mm
PIL640
Specific References
