Jeti Power Ion RB 3100 2S1P Battery

Please note these Power-ion Batteries do not need balance charging and do not have a balance connecter, therefore please make sure your charger can function without the balance function connected.

Jeti Power-Ion are battery packs suitable to power the receiver and servos in the model.

The main advantages of Power-Ion are good mechanical damage resistance due to their metal cases. The cells are also well known for their long cycle life. No balancing is needed during charging or use, if the current draw is higher than 150A, the short circuit protection is activated, voltage protection is also activated if the charging voltage is higher than 5V per cell.

The Lithium Ion cells are functional at very low or very high temperatures (-10 - +60°C) which makes them ideal for model use. Each pack has two connection cables, one with the JR connector for charging and with one two-wire cable with the MPX connector for connection to the model or charging, both cables are the same length.

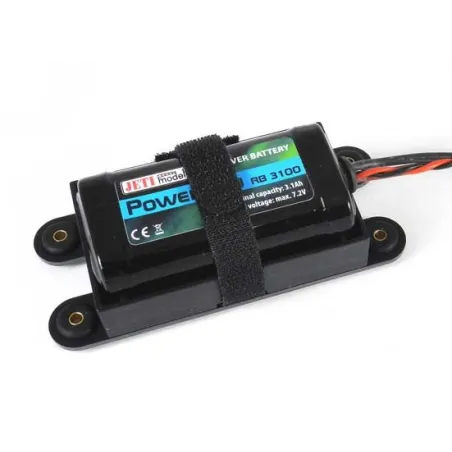

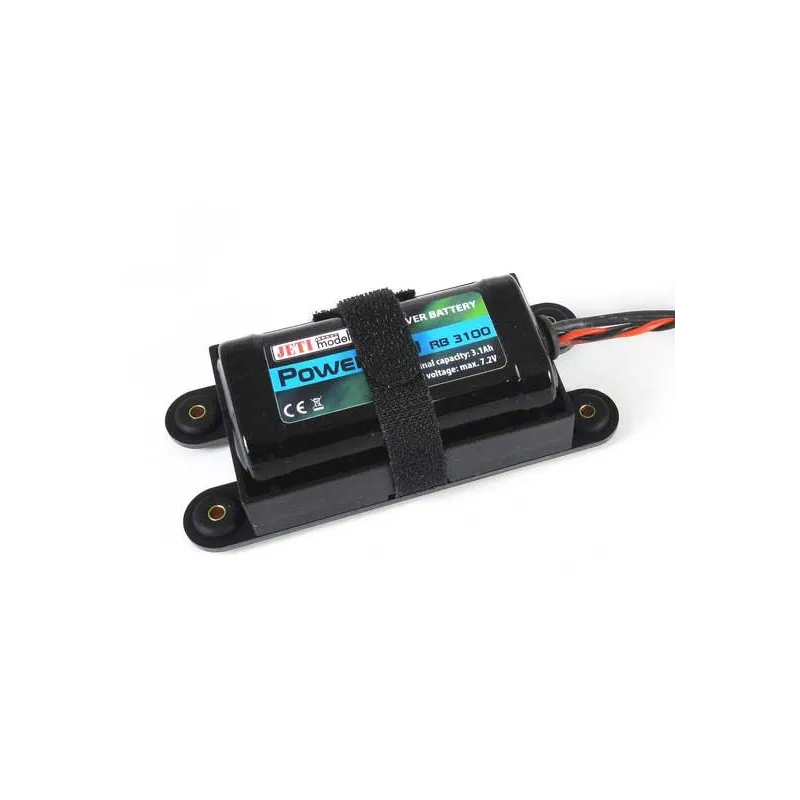

The Power-Ion are supplied with a plastic mount and are fastened in to this by a Velcro loop. This case is mounted to the model using anti-vibration rubber grommets and bolts supplied. Pay attention to correct placing of the brass washer. Its collar should be in contact with the assembly board to which the battery case is mounted to avoid squashing the grommet and losing the vibration damping. You can of course fit the battery pack in to a model without the mount if required

Technical data:
