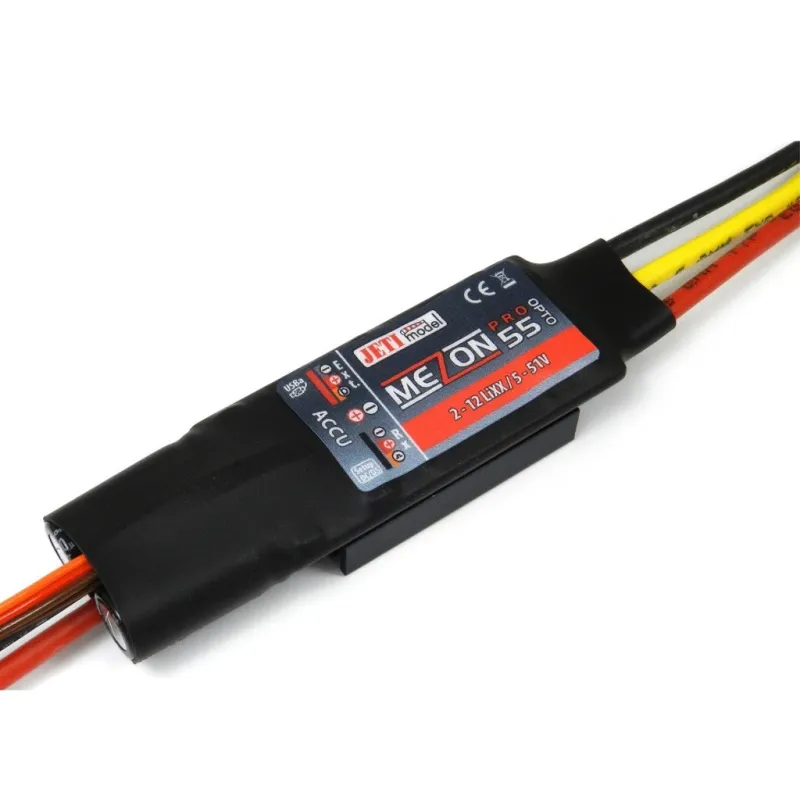

      Jeti Mezon 55 Pro Opto Speed Controller
      Jeti Mezon 55 Pro Opto Speed Controller
      Jeti Mezon 55 Pro Opto Speed Controller
      Jeti Mezon 55 Pro Opto Speed Controller
      Jeti Mezon 55 Pro Opto Speed Controller
      Jeti Mezon 55 Pro Opto Speed Controller

      Jeti Mezon 55 Pro Opto Speed Controller

      Review (0)
      £114.29
      Tax Included
      Supplier Stock 1-3 days
      Quantity :
      100% secure payments
      Write your review
      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
        Weight [g] 68
        Dimensions [mm] 26 x 18 x 83
        Sustained current [A] 50
        Telemetry Yes
        Operational temperature [°C] -10 ... 85
        Supply Voltage [V] 5 ... 51
        Batteries LiXX 2 ... 12
        Resistance in conducting state [mΩ] 2 x 1.2
        Cable crossection (input/output) [mm²] 2.5 / 2.5

        Files for download

        Manuals - MEZON PRO

        MEZON PRO.BIN - Configuration file for DC/DS transmitters (copy to Devices folder)

        MEZON PRO Quick Guide - Quick guide [CZ/DE/EN/FR]

        Update - MEZON PRO

        Mezon Pro V1.06 - MEZON PRO firmware update (12/2018). Brake issue solved (MEZON 80 PRO)

        Powerful MEZON PRO controllers can be used in a wide variety of applications. They come an optocoupler, full JETI Duplex EX telemetry and programmability via the Device Explorer of JETI Duplex DS/DC transmitters. Forward/reverse motor operation is also possible.





        In addition, the throttle channel can optionally be connected to the receiver "EX Bus" port. A separate output pin for a throttle channel is therefore not necessary at the receiver, telemetry and control signals are transferred in both ways via just a single cable.



        Properties

        • Compact size
        • Setting via the Device Explorer of the JETI DC / DS transmitter
        • Real-time telemetry via JETI Duplex EX Bus (perfect for JETI DC / DS transmitters)
        • Telemetry data: battery voltage, battery current + BEC current, used battery capacity, RPM, PWM, controller temperature
        • Telemetry data reset by any transmitter switch
        • Powerful BEC, ideal when using JETI Assist or other gyro systems in a model
        • BEC with a wide input voltage range and adjustable output voltage
        • Activation of the throttle channel from the EX Bus is possible; the receiver then does not have to offer its own slot for the throttle channel.
        • Programmable with JETBOX
        • Operating modes: Model aircraft, forward / reverse operation
        • Proportional brake with a definable braking point at the throttle stick
        • F3A brake conveniently adjustable via the Device Explorer
        • Heat sink for long engine run times
        • High efficiency
        • Firmware upgrade possible
        • Wide range of adjustable parameters
        Jeti
        JMP-055-O

        Specific References

        No customer reviews for the moment.
