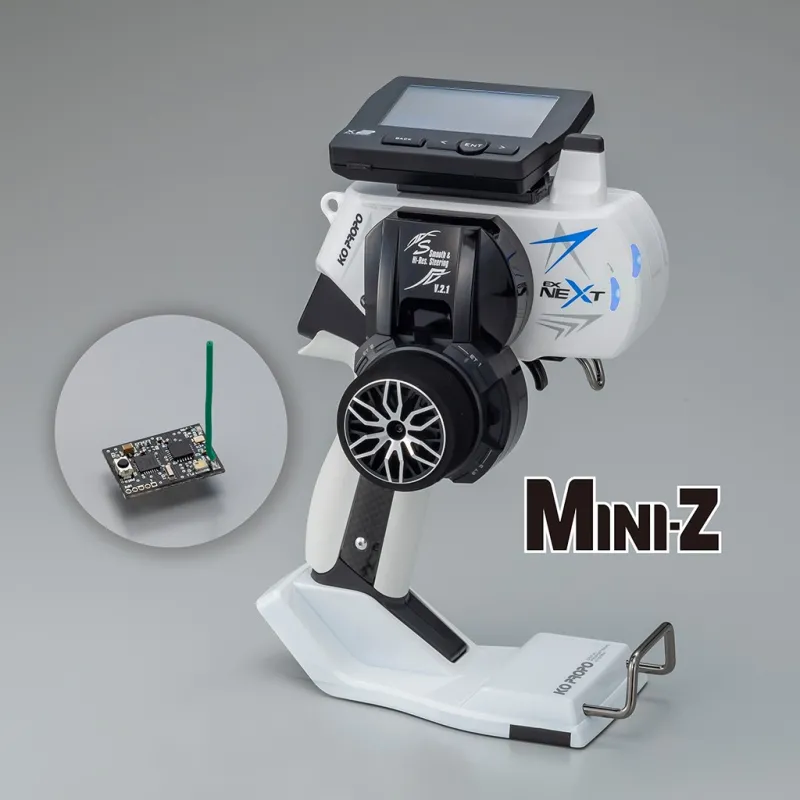

EX-NEXT (Normal Grip) Mini-Z Evo RX unit
£349.99
Tax Included
EX NEXT's high performance for MINI Z!
This transmitter/receiver set includes the “MINI Z EVO Receiver Unit EX NEXT MC 8”, which can be used with the MINI Z EVO. The evolved EX NEXT's high speed response can be used with the MINI Z EVO.
Firmware Ver.2.00 compatible with MINI Z
Firmware Ver.2.00 is released to use MINI
Z EVO with EX NEXT. This set of EX NEXT is preset with Ver.2.00.
XT Advanced Mode and XT Telemetry Mode for KR 420XT
XT MINI Z Mode for MINI Z EVO Receiver *One way communication only. No telemetry function.
The new RF Mode “ MINI Z Mode” has been added in Ver. 2.00. The previous “XT Advanced Mode” and “XT Telemetry Mode” can still be used. In other words, by preparing the KR 420XT, you can use it as is with a regular RC car.
MINI Z Mode EX
EX NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI Z Mode, it outperforms MHS such as the EX RR, which has been the fastest . The EX NEXT's high speed communication increases the density of
information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high definition, high
resolution control.
If you already have EX NEXT
If you already have EX NEXT, you can update it to Ver. 2.00 to make it compatible with MINI Z EVO. Please download the software and files necessary for uploading. *
The ICS USB Adapter HS and PC (Windows 8.1 or 10) is required for the update .
Adjust the Gyro sensitivity at the Transmitter
The EX NEXT allows you to adjust the sensitivity of the gyro installed in the MINI Z from the transmitter at hand. The sensitivity can be adjusted using the 3CH/4CH "GYRO" function. The sensitivity can be easily adjusted from the control console without connecting the machine to a PC, allowing fine adjustments while running the machine.
Special pearl white paint.
The master unit and stand of EX NEXT are painted in pearl white. In addition, a top coat has been applied to give it a glossy finish, giving it a very high quality look. *The stand of the Expert Grip Unit LDT remains in the molded color.
Specifications
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
Li-Fe battery（2cell 6.6V）(sold separately)
Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each products.
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Compatible receiver: KR-420XT, " MINI-Z EVO Receiver Unit EX-NEXT MC-8"
This transmitter/receiver set includes the “MINI Z EVO Receiver Unit EX NEXT MC 8”, which can be used with the MINI Z EVO. The evolved EX NEXT's high speed response can be used with the MINI Z EVO.
Firmware Ver.2.00 compatible with MINI Z
Firmware Ver.2.00 is released to use MINI
Z EVO with EX NEXT. This set of EX NEXT is preset with Ver.2.00.
XT Advanced Mode and XT Telemetry Mode for KR 420XT
XT MINI Z Mode for MINI Z EVO Receiver *One way communication only. No telemetry function.
The new RF Mode “ MINI Z Mode” has been added in Ver. 2.00. The previous “XT Advanced Mode” and “XT Telemetry Mode” can still be used. In other words, by preparing the KR 420XT, you can use it as is with a regular RC car.
MINI Z Mode EX
EX NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI Z Mode, it outperforms MHS such as the EX RR, which has been the fastest . The EX NEXT's high speed communication increases the density of
information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high definition, high
resolution control.
If you already have EX NEXT
If you already have EX NEXT, you can update it to Ver. 2.00 to make it compatible with MINI Z EVO. Please download the software and files necessary for uploading. *
The ICS USB Adapter HS and PC (Windows 8.1 or 10) is required for the update .
Adjust the Gyro sensitivity at the Transmitter
The EX NEXT allows you to adjust the sensitivity of the gyro installed in the MINI Z from the transmitter at hand. The sensitivity can be adjusted using the 3CH/4CH "GYRO" function. The sensitivity can be easily adjusted from the control console without connecting the machine to a PC, allowing fine adjustments while running the machine.
Special pearl white paint.
The master unit and stand of EX NEXT are painted in pearl white. In addition, a top coat has been applied to give it a glossy finish, giving it a very high quality look. *The stand of the Expert Grip Unit LDT remains in the molded color.
Specifications
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
Li-Fe battery（2cell 6.6V）(sold separately)
Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each products.
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Compatible receiver: KR-420XT, " MINI-Z EVO Receiver Unit EX-NEXT MC-8"
