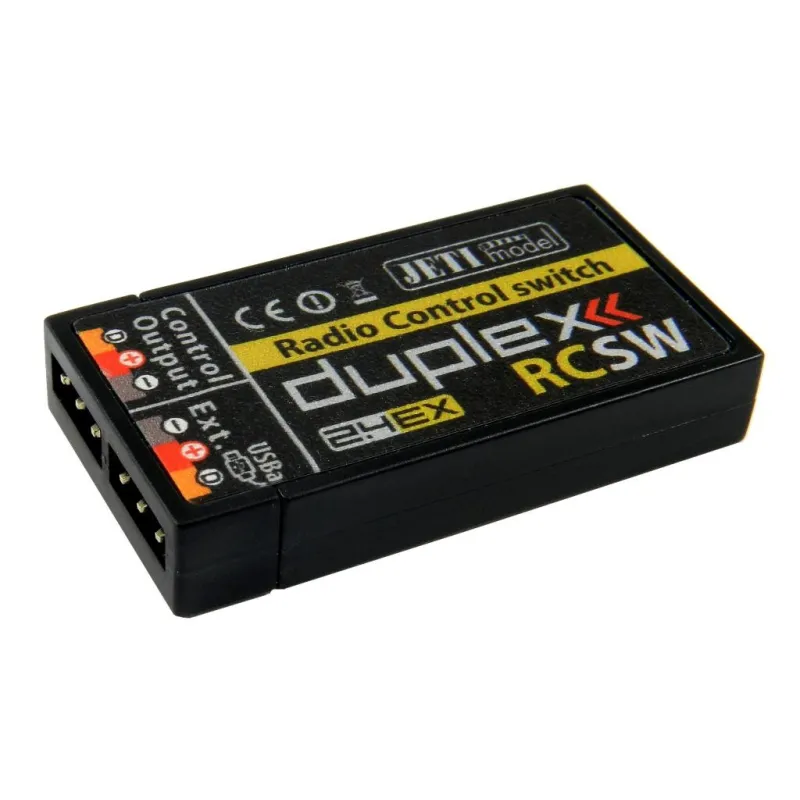

Jeti RCSW
£70.01
Tax Included
| Weight [g] | 5 |
| Dimensions [mm] | 38 x 7 x 20 |
| Operational temperature [°C] | -20 ... 85 |
| Average Current [mA] | 20 |
| Recommended input voltage [V] | 3,3 ... 51 |
| Idle current [µA] | 80 |
Files for download
RCSW - RC Switch is a wireless switch designed especially for JETI model products (BEC stabilizers, Central Box and other accessories) that increase the comfort of model control. RC Switch can be easily controlled using DC/DS transmitters and it can be simply used as a replacement of the magnetic key.
Compatible devices: SBEC 40, DPS 40, SPS 20, DSM 10, Central Box 200, Central Box 400, Main Switch etc.
Switching is indicated by a red LED that is visible through the opening on the side of the RC Switch.
Setting the polarity of the switch is specific for each JETI model product, in the chart below there is a list of several supported devices and their RC Switch settings for DC and DS transmitters.
