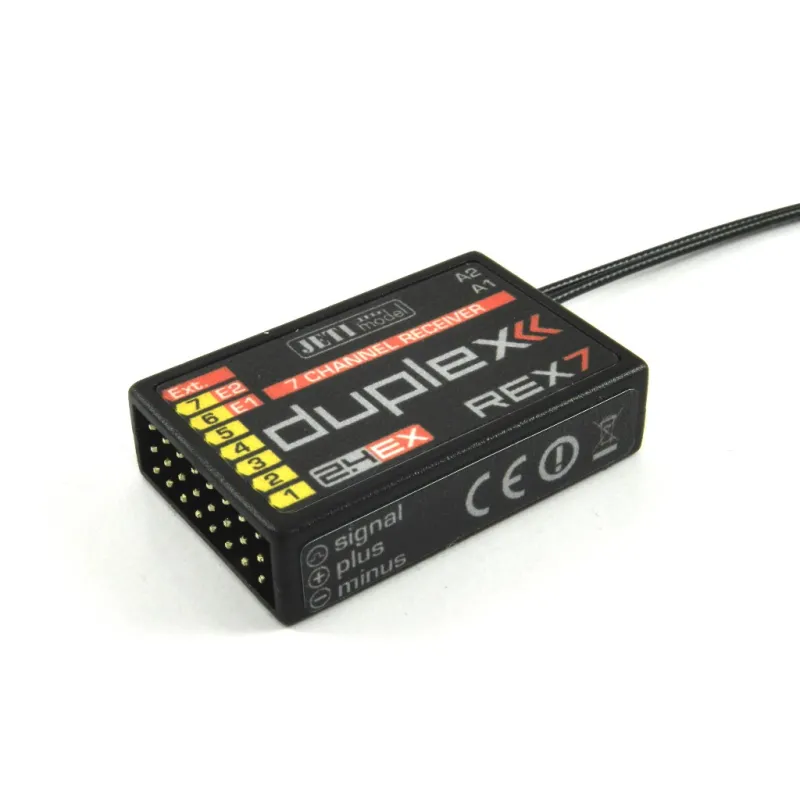

Jeti REX 7 Receiver
  • Jeti REX 7 Receiver

Jeti REX 7 Receiver

JDEX-RR7
8595245911584
£70.06
VAT included
Quantity
Last items in stock

Weight [g] 13
Dimensions [mm] 42 x 28 x 11
Number of channels 7
Telemetry Yes
Operational temperature [°C] -10 ... 85
Compatible protocols DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm] 2 x 200
Supply Voltage [V] 3,5 - 8,4
Average Current [mA] 75
Satellite receiver support Yes
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
Assist stabilization No


Files for download

Manuals - Duplex REX

JETI Duplex REX Manual V1.00 [CZ] - Czech user manual for the receivers version 1.00 (5/2015)
REX JETIBOX Scheme [CZ] - JETIBOX screen schemes of the receivers
JETI Duplex REX Manual V1.00 [EN, DE] - English & German user manual version 1.00 (5/2015)
REX JETIBOX Scheme [EN, DE] - JETIBOX screen schemes of the receivers


Update - Receivers

Receiver update language pack - REX V1.12, REX Assist V1.10, R V3.26 [JETIBOX in CZ, EN or FR]
REX V1.12 & REX Assist V1.10 (9/2018) receiver update - Release notes and transmitter device definitions included.
Duplex REX Assist V1.09 - REX Assist receivers firmware update (05/2018) - removed airspeed compensation
Duplex REX V1.10 - Duplex REX receivers firmware update (03/2018) - DITEX Telemetry
RC Switch V 1.07 - RC Switch firmware update (9/2017)
RC Switch V 1.06 - RC Switch firmware update (12/2016)
Duplex REX V1.03 - Duplex REX receivers firmware update (9/2016)
Duplex EX - RSat2, R3L V3.25 - Standard Rx firmware update, 24 channels support (2/2016)
a) Duplex EX - Rx V3.24 - Standard - Standard Rx Firmware Update (6/2015)
b) Duplex EX - Rx V3.24 - UDI16 - Rx Firmware Update (6/2015) for multirotors, added UDI16 protocol
Duplex EX - Rx V3.06 - Rx Compatibility Firmware Update (10/2012)
Duplex EX - R3L Tx V3.06 - Duplex R3L in Tx mode. Option for a wireless buddy box



7 channel full-range receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions.

Additional features:

  • PPM input
  • PPM output
  • Integrated expander for EX & EX Bus devices
  • UDI digital output


JETI Duplex receivers are designated for use with the DC/DS transmitters or the JETI transmitter modules in the 2.4 GHz frequency band.

The receivers support online updates so that everyone is able to install the latest software versions. From the very beginning bidirectional transmission has been a distinctive feature of the Duplex system, this not only handles telemetry data, but it also helps to ensure secure primarily transmission safety between the transmitter and receiver.

The Duplex EX telemetry system uses an open protocol. This gives the advantage of compatibility with a large number of telemetry sensors from both JETI model and third party producers. For the display of telemetry data you can use purposely designed equipment like the JETIBOX profi and DC/DS transmitters or you can display the data on PCs.

The REX receivers are fully compatible with the previous generation of the Duplex equipment.
