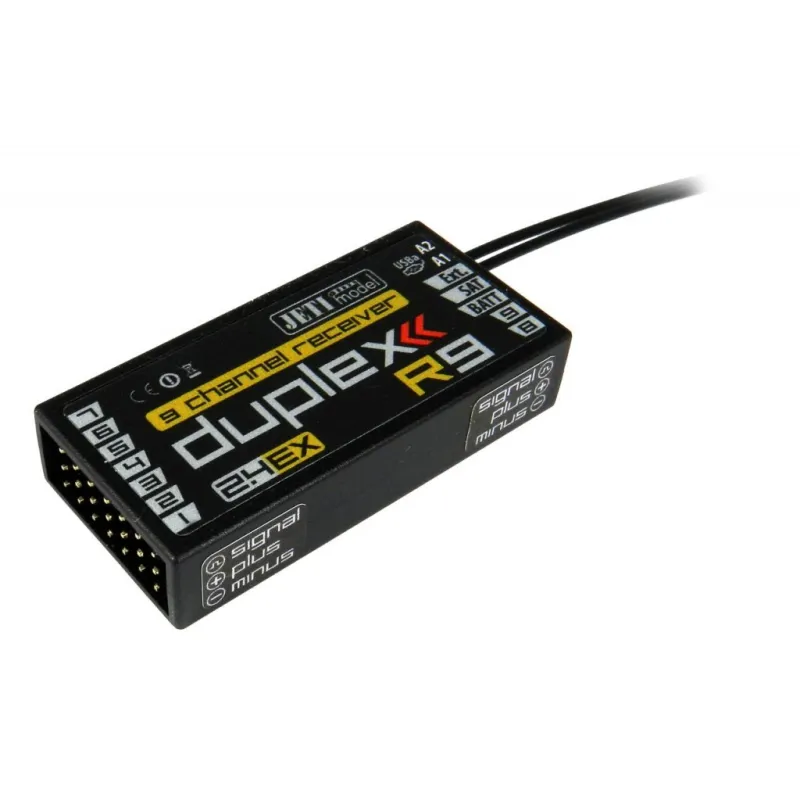

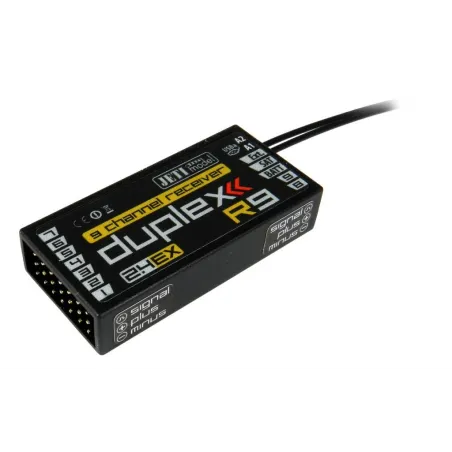

Jeti R9 Receiver
£93.06
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
| Weight [g] | 13 |
| Dimensions [mm] | 51 x 24 x 11 |
| Number of channels | 9 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 85 |
| Compatible protocols | DUPLEX 2.4GHz EX, EX Bus |
| Antenna Length [mm] | 2 x 200 |
| Supply Voltage [V] | 3,2 - 8,4 |
| Average Current [mA] | 30 |
| Satellite receiver support | Yes |
| Output Power [dBm] | 15 |
| Receiver Sensitivity [dBm] | -106 |
Files for download
Manuals - Duplex EX
JETI Duplex EX Receiver Manual V3.22 [EN, DE] - English & German user manual for the receivers version 3.22 (6/2014)
JETI Duplex EX Manual V3.0 CZ - Czech user manual for Tx modules and receivers (6/2011)
JETI Duplex EX Manual V3.0 EN+DE - English & German user manual for Tx modules and receivers (6/2011)
Rx + RSat Jetibox Schema V3.0 CZ - Jetibox screen schemes of the receivers and satellites
Rx + Rsat Jetibox Schema V3.0 EN+DE - Jetibox screen schemes of the receivers and satellites
Rx + RSat Jetibox Scheme V3.0 FR - Jetibox screen schemes of the receivers and satellites
Update - Receivers
Receiver update language pack - REX V1.12, REX Assist V1.10, R V3.26 [JETIBOX in CZ, EN or FR]
REX V1.12 & REX Assist V1.10 (9/2018) receiver update - Release notes and transmitter device definitions included.
Duplex REX Assist V1.09 - REX Assist receivers firmware update (05/2018) - removed airspeed compensation
Duplex REX V1.10 - Duplex REX receivers firmware update (03/2018) - DITEX Telemetry
RC Switch V 1.07 - RC Switch firmware update (9/2017)
RC Switch V 1.06 - RC Switch firmware update (12/2016)
Duplex REX V1.03 - Duplex REX receivers firmware update (9/2016)
Duplex EX - RSat2, R3L V3.25 - Standard Rx firmware update, 24 channels support (2/2016)
a) Duplex EX - Rx V3.24 - Standard - Standard Rx Firmware Update (6/2015)
b) Duplex EX - Rx V3.24 - UDI16 - Rx Firmware Update (6/2015) for multirotors, added UDI16 protocol
Duplex EX - Rx V3.06 - Rx Compatibility Firmware Update (10/2012)
Duplex EX - R3L Tx V3.06 - Duplex R3L in Tx mode. Option for a wireless buddy box
9 channel full-range receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions. Power supply can be provided by any of the servo JR connectors.
Additional features:
- PPM input (Sat1)
The DUPLEX EX line of receivers is intended for operation with DUPLEX Tx transmitter modules in the 2,4GHz band and are fully compatible with the previous version of the DUPLEX. Thanks to the fully digital and bidirectional communication between transmitter and receiver there arise completely new aspects in the model remote control branch. One of the most important advantages is the operation without crystal, moreover the low susceptibility towards interference, the high range up to the limit of visibility and the possibility to follow anytime the onboard state of the model and its functional parts.
An additional satellite receiver RSat2 complements the receivers R9, R10, R11, R12, R14 and R18. This receiver is a full DUPLEX system receiver offering the complete functional spectrum of the system. Instead of classical servo pulses the output of the RSat2 receiver offers a PPM signal only. This PPM signal is furtheron processed by the receivers R9, R10, R11, R12, R14, R18 or by compatible RC equipment which requires a PPM signal at the input.
DUPLEX System EX is fully compatible with the previous version of the DUPLEX.
JDEX-R9
Specific References
- EAN13
- 8595245908836
