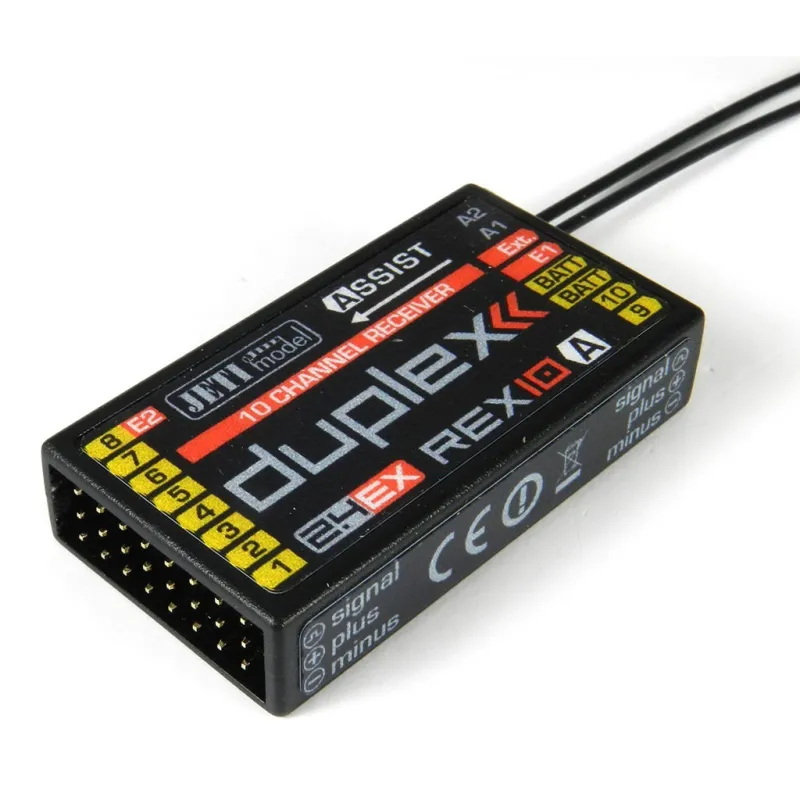

Jeti REX 10 Assist Receiver
£167.98
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
| Weight [g] | 16 |
| Dimensions [mm] | 51 x 28 x 11 |
| Number of channels | 10 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 85 |
| Compatible protocols | DUPLEX 2.4GHz EX, EX Bus |
| Antenna Length [mm] | 2 x 200 |
| Supply Voltage [V] | 3,5 - 8,4 |
| Average Current [mA] | 75 |
| Satellite receiver support | Yes |
| Output Power [dBm] | 15 |
| Receiver Sensitivity [dBm] | -106 |
| Assist stabilization | Yes |
Files for download
Manuals - REX A
Duplex REX A version 1.07 [CZ] - Czech user manual for REX Assist receivers
Duplex REX A version 1.07 [DE] - German user manual for REX Assist receivers
Duplex REX A version 1.07 [EN] - English user manual for REX Assist receivers
Update - Receivers
Receiver update language pack - REX V1.12, REX Assist V1.10, R V3.26 [JETIBOX in CZ, EN or FR]
REX V1.12 & REX Assist V1.10 (9/2018) receiver update - Release notes and transmitter device definitions included.
Duplex REX Assist V1.09 - REX Assist receivers firmware update (05/2018) - removed airspeed compensation
Duplex REX V1.10 - Duplex REX receivers firmware update (03/2018) - DITEX Telemetry
RC Switch V 1.07 - RC Switch firmware update (9/2017)
RC Switch V 1.06 - RC Switch firmware update (12/2016)
Duplex REX V1.03 - Duplex REX receivers firmware update (9/2016)
Duplex EX - RSat2, R3L V3.25 - Standard Rx firmware update, 24 channels support (2/2016)
a) Duplex EX - Rx V3.24 - Standard - Standard Rx Firmware Update (6/2015)
b) Duplex EX - Rx V3.24 - UDI16 - Rx Firmware Update (6/2015) for multirotors, added UDI16 protocol
Duplex EX - Rx V3.06 - Rx Compatibility Firmware Update (10/2012)
Duplex EX - R3L Tx V3.06 - Duplex R3L in Tx mode. Option for a wireless buddy box
10 channel full-range receiver with integrated Assist stabilization, compatible with JETI EX & EX Bus protocols. Supports telemetry functions and stabilization for airplane and multicopter models.
The REX A receivers enhance the REX series of receivers and extend it with the intelligent flight stabilization feature, which is designed for airplane models and multicopters. This stabilization works in all three axes of the model and facilitates flying in windy or otherwise challenging conditions. Aerobatic maneuvers will be more accurate and smoother. With the help of several flight modes, which are also suitable for beginner pilots, flying practice will be really easy.
Properties
- Up to 16 stabilized airplane channels.
- Support for different multicopter types – from tricopters to octocopters.
- Up to 3 adjustable flight modes, options for stabilizing the horizon and altitude.
- In-flight gain tuning using free channels.
- Using the latest 3-axis gyroscope, 3-axis accelerometer and barometric altimeter.
- Support for LED strip consisting of WS2812 chips.
- Support for external camera gimbal driven by servos.
- Intelligent fail-safe.
- Vibration analysis.
- Full set-up options with DC/DS transmitters or via PC.
- Available telemetry: Receiver voltage, signal quality, G-force, attitude orientation.
- Support of telemetry and up to 3 sensors connected directly.
Table of possible functions on the individual receiver pins
Output Types:
- Y1 - Y12: servo output, digital output, digital input, motor 1-8 (multicopters), camera roll, pitch, and yaw.
- E1, E2: JETIBOX/EX sensor, PPM output, PPM input, EX Bus output, UDI output
- Ext: JETIBOX/EX sensor
JDEX-RR10A
