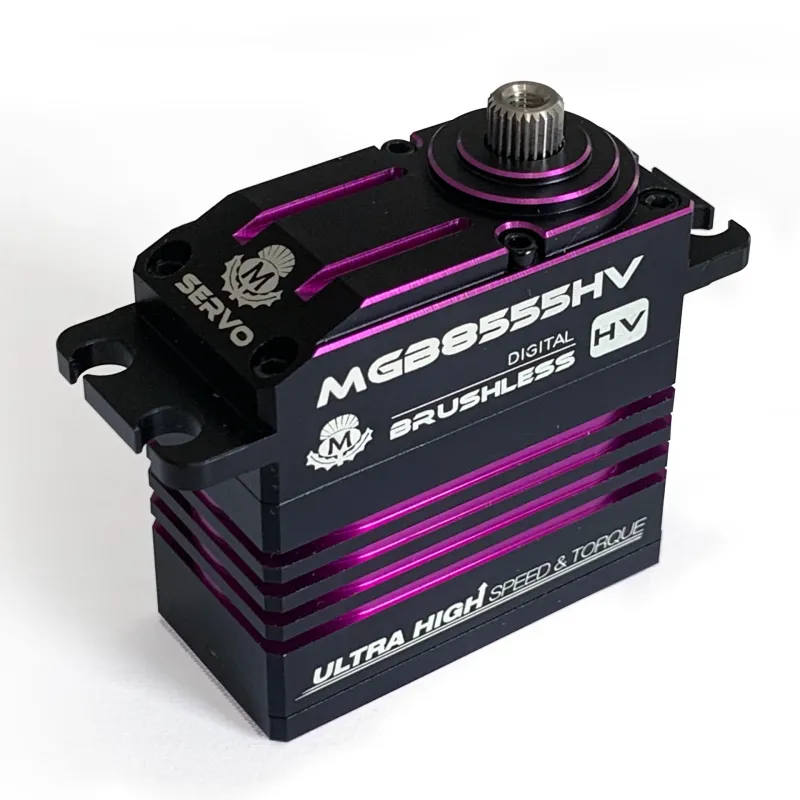

MGB8555HV 54.7Kg/0.12s B/LESS HV SERVO
£124.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Features:
- High Performance, Standard Size, Multi Voltage Digital Servo
- High-Precision Steel Gears
- Full CNC Aluminium Hull Case
- High Quality Brushless Motor
- Dual Ball Bearing
- Long Working Life
- 25T (Futaba Type) Spline
- JR style plug
- Waterproof
- Suitable for IMAC, Warbirds & Giant Scale Warbirds
Description:
The MGB8555HV is a waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications:
| Dead band: | 2µs default |
|---|---|
| Working frequency: | 1520µs / 330hz |
| Motor: | Brushless Motor |
| Gearset: | Steel |
| Spline: | 25T |
| Operating Voltage: | 5.0 ~ 8.4V |
| Operating Speed (5.0V): | 0.20sec/60° |
| Operating Speed (6.0V): | 0.17sec/60° |
| Operating Speed (7.4V): | 0.13sec/60° |
| Operating Speed (8.4V): | 0.11sec/60° |
| Torque (5.0V): | 32.6kg.cm |
| Torque (6.0V): | 39.1kg.cm |
| Torque (7.4V): | 48.2kg.cm |
| Torque (8.4V): | 54.7kg.cm |
| Dimensions: | 40 x 20 x 39.1mm |
| Weight: | 85g |
| Connector Wire Length: | 310mm |
| Bearing: | 2BB |
MACB8555HV
