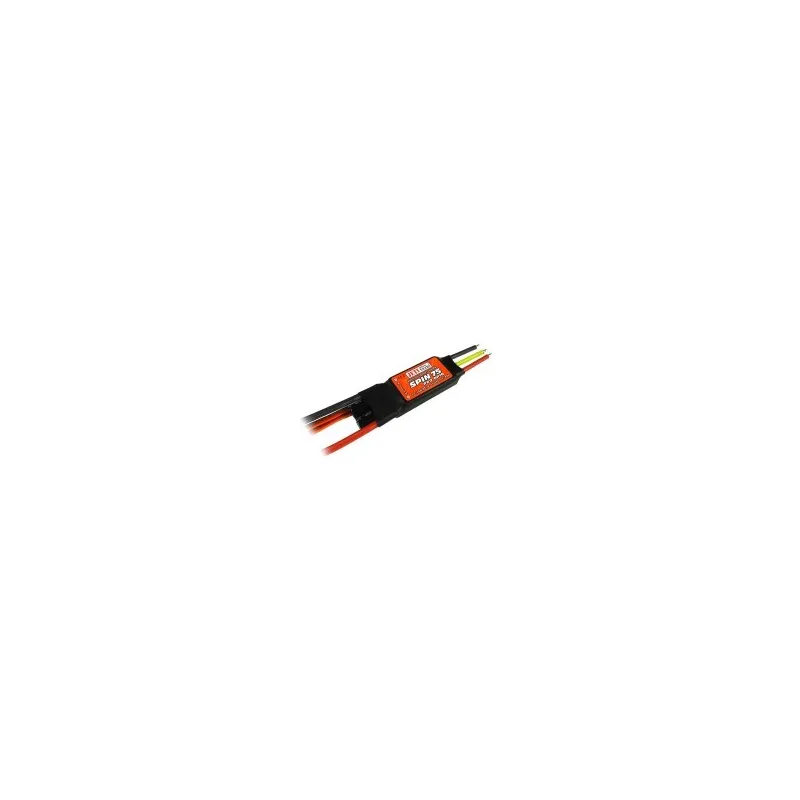

      Jeti SPIN 75 Pro opto Speed Controller
      Jeti SPIN 75 Pro opto Speed Controller

      Jeti SPIN 75 Pro opto Speed Controller

      Review (0)
      £128.21
      Tax Included
      Supplier Stock 1-3 days
      Quantity :
      100% secure payments
      Write your review
      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
        Weight [g] 55
        Dimensions [mm] 52 x 25 x 15
        Sustained current [A] 75
        Telemetry Yes
        Operational temperature [°C] -10 ... 85
        Supply Voltage [V] 12 ... 42
        Batteries NiXX 14 ... 30
        Batteries LiXX 4 ... 10
        Number of power transistors 72
        Cable crossection (input/output) [mm²] 4,0 / 2,5
        Input capacitance [µF] 2 x 470


        Files for download

        Manuals - SPIN pro

        SPIN Brake Settings - How to set the controller's brake manually
        SPIN pro JETIBOX Schema CZ/EN/DE - JETIBOX Properties & Menu



        The SPIN Pro line offers, in comparison with the predecessors, increased adjustment possibilities, such as automatic motor timing, shut-off voltage adjustments practicable directly in volts, tuning of start-up properties for different motor types, as well as new possibilities of mode activation for setting up autorotation of helicopters.

        Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).





        SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.



        Jeti
        JSP-75-O

        Specific References

        ean13
        8595245900243
