JetCat Turbine Telemetry System for DMSS
£39.95
VAT included
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

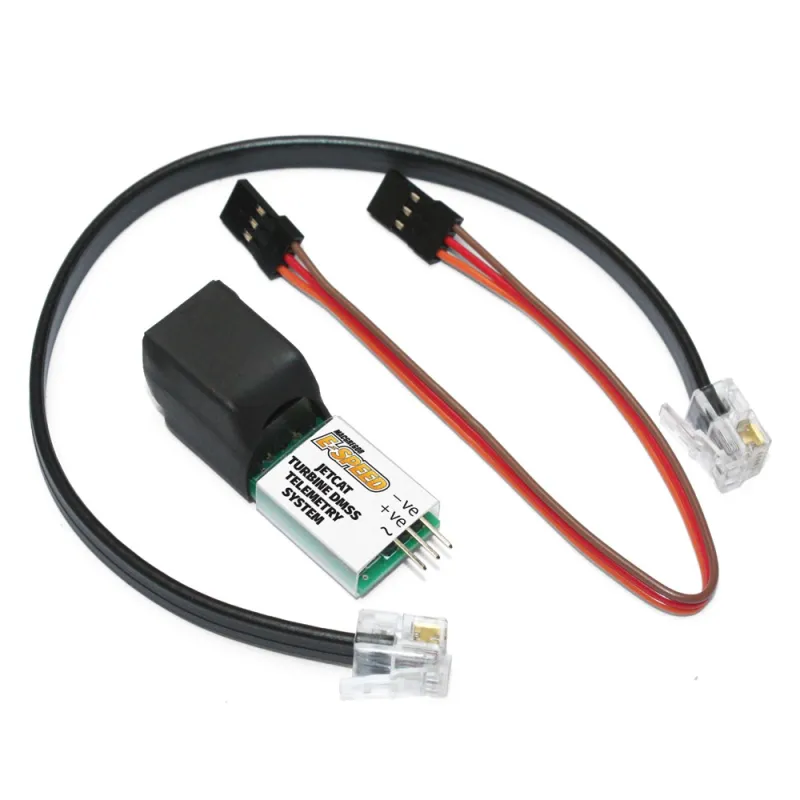

This telemetry unit will take data from your JetCat ECU and relay it to your JR DMSS radio. Please note that the data which is relayed back to your radio may not be 100% accurate and should be used as a guide.
Please plug the supplied JetCat style lead into the telemetry device and either the data port on your JetCat ECU or the plug on the I/O board. Then plug the supplied male-male patch lead into the other end of the telemetry device noting the polarity with the other end of this lead into either the data port on your JR DMSS receiver or into you TLS1-ADP (sold separately).
You will need to configure the telemetry screen on your JR DMSS radio. Please refer to the radios manual on how to do this.
Several different turbine parameters can be monitored including;
| Parameter | Radio Telemetry Setting |
|---|---|
| Turbine RPM | RPM |
| Turbine Exhaust Gas Temperature (EGT) | Temp |
| Turbine Status | FPACK Watts* |
| Last Shutdown Code | FPACK Watts* |
| EUC Battery Voltage | FPACK Voltage |
| Current Fuel Flow | FPACK Current |
| MI Consumed/Remaining | FPACK.mah** |
* Please see the table below for status and shutdown codes
** The fuel tank size will need to be configured on both the transmitter and the ECU. For the transmitter set the battery capacity to your fuel tank size (measure in ml), for the ECU follow the calibration instructions in the JetCat manual.
Turbine Status
The telemetry unit provides running and shutdown status codes using the FPACK Watts measure. The table below shows the code mappings:
| Code | Type | Meaning |
|---|---|---|
| 1 | Running | Wait for RPM (Standby/Start) |
| 2 | Running | Ignite |
| 3 | Running | Accelerate |
| 4 | Running | Stabilise |
| 5 | Running | Learn HI |
| 6 | Running | Learn LO |
| 8 | Running | Slow Down |
| 10 | Running | Auto Off |
| 11 | Running | Run (Reg.) |
| 12 | Running | Acceleration delay |
| 13 | Running | SpeedReg (Speed Ctrl) |
| 14 | Running | Two-Shaft-Regulate (Only for Turbines with Secondary Shaft) |
| 15 | Running | PreHeat1 (Only for direct Kerosene startup mode) |
| 16 | Running | PreHeat2 (Only for direct Kerosene startup mode) |
| 17 | Running | MainFStrt (Only for direct Kerosene startup mode) |
| 19 | Running | Keros.FullOn(Only for direct Kerosene startup mode) |
| 100 | Last Shutdown | No Off-Condition defined |
| 101 | Last Shutdown | Shutdown via RC |
| 102 | Last Shutdown | Over temperature |
| 103 | Last Shutdown | Ignition timeout |
| 104 | Last Shutdown | Acceleration timeout |
| 105 | Last Shutdown | Acceleration too slow |
| 106 | Last Shutdown | Over RPM |
| 107 | Last Shutdown | Low RPM Off |
| 108 | Last Shutdown | Low Battery |
| 109 | Last Shutdown | Auto Off |
| 110 | Last Shutdown | Low Temperature Off |
| 111 | Last Shutdown | Hi Temperature Off |
| 112 | Last Shutdown | Glow Plug defective |
| 113 | Last Shutdown | Watch Dog Timer |
| 114 | Last Shutdown | Fail Safe Off |
| 115 | Last Shutdown | Manual Off (via GSU) |
| 116 | Last Shutdown | Power Fail (Battery Fail) |
| 117 | Last Shutdown | Temp Sensor Fail (Only during startup) |
| 118 | Last Shutdown | Fuel Fail |
| 119 | Last Shutdown | Prop Fail (Only two shaft Engines) |
| 120 | Last Shutdown | 2nd Engine Fail |
| 121 | Last Shutdown | 2nd Engine differential too high |
| 122 | Last Shutdown | 2nd Engine no communication |
