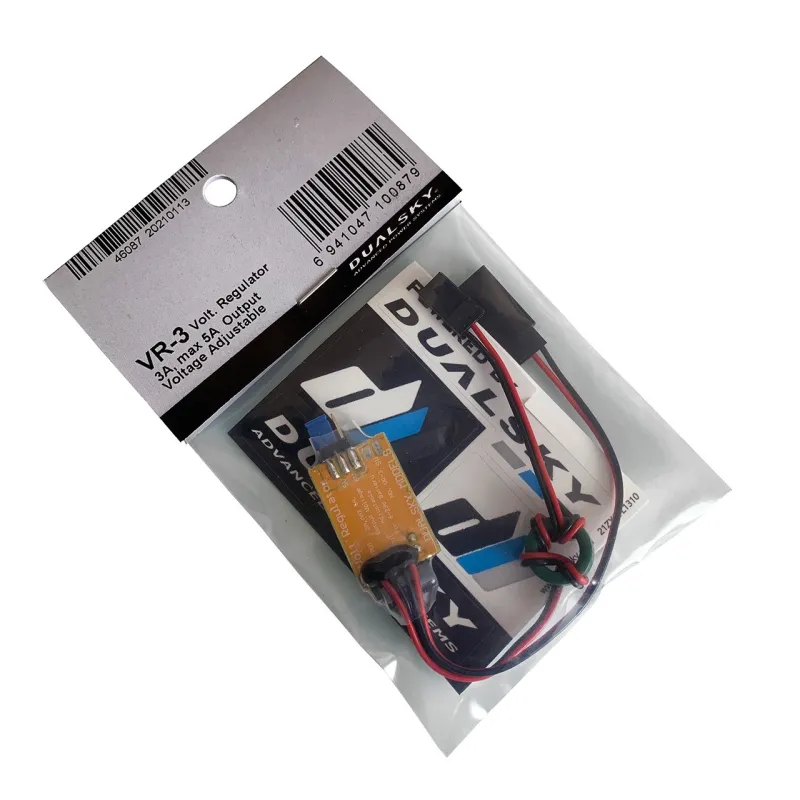

VR-3 (UBEC) 3A SWITCH MODE(UPTO 6S LIPO)
£12.95
Tax Included
The VR-3 is a switch-mode DC regulator separated from ESC, it will take high-voltage (5.5V-23V) power from your battery pack and convert it to a consistent safe voltage for your receiver, gyro and servos. The VR-3 allows you to easily choose whether to run your system at 5 or 6 volts. Running at 6 volts gives faster servo speed, and most modern receivers and servos will work fine at this voltage.
Features
- VR-3 is an advanced switching regulator, provides over-current and over-heat protection function, and the switching frequency is 300KHz.The max efficiency of this chip is 92%.
- The smallest size and the lightest weight.
- Compare linear BEC with switch-mode BEC: When using a lithium battery pack more than 3s, a switch-mode BEC has much higher efficiency than linear BEC.
- Reverse polarity protection at input is provided.
Specifications
| Dimensions: | 21.5 x 15.5 x 13.5mm |
|---|---|
| Output: | 5V/3A or 6V/3A, MAX. 5A(10% Duty) |
| Ripple: | <50mVp-p(@2A/12V) |
| Input: | 5.5V-23V (2-5s lithium battery pack, 5-15cells NiMh / NiCd battery pack) |
| Weight: | 10g (Including cables) |
| Idle power consumption: | < 10 ma from battery |
| Connections: | Red/black 24 ga. Wire pair for main power in, 24 ga. red/black Servo lead out to Rx, JR style |
| Controls: | Jumper selects 6v or 5v output |
| Indicators: | green LED shows power ON |
| Installation: | recommend mounting in airflow to improve reliability and efficiency |
